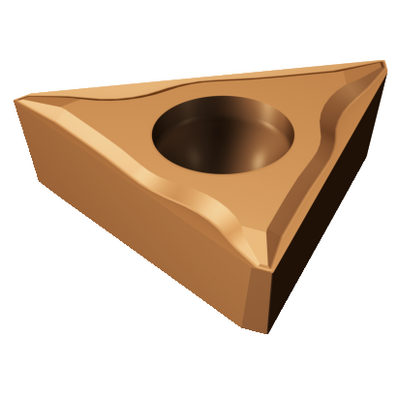

Generic representation
Available
Package quantity: 10
ISO: TCEX 05 01 01R-F 1125
Material Id: 5752352
EAN: 12344054
ANSI: TCEX 1(1)03R-F 1125
Start values (KAPR 93 deg )
M1.0.Z.AQ, Hardness: 200 HB
m
ap 0.15 mm (0.05 - 0.8)
fn 0.06 mm/r (0.02 - 0.1)
hex 0.06 mm/r (0.02 - 0.1)
vc 205 m/min (205 - 205)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
F
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
2.25 mm
Insert size and shape
(CUTINT_SIZESHAPE)
TC0501
Cutting edge count(CEDC)
3
Inscribed circle diameter(IC)
3.175 mm
Insert shape code(SC)
Triangular
Cutting edge effective length(LE)
5.47 mm
Corner radius
(RE)
0.1 mm
Hand
(HAND)
Right
Grade
(GRADE)
1125
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN+TiAlN
Insert thickness(S)
1.4 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0014 kg
Insert seat(SSC_M)
05
Insert seat size code imperial view(SSC_N)
1/8
Release date(ValFrom20)
08/09/2008
Release pack id(RELEASEPACK)
08.2
