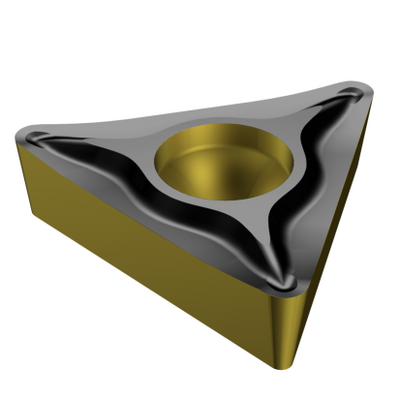

Generic representation
List price: 18.60 GBP
Available
Package quantity: 10
ISO: TCGT 11 03 04-UM 1515
Material Id: 5752338
EAN: 12347112
ANSI: TCGT 221-UM 1515
Start values (KAPR 91 deg )
P2.1.Z.AN, Hardness: 175 HB
P
ap 1.25 mm (0.5 - 2.5)
fn 0.15 mm/r (0.08 - 0.25)
hex 0.15 mm/r (0.08 - 0.25)
vc 260 m/min (310 - 165)
M1.0.Z.AQ, Hardness: 200 HB
M
ap 1.25 mm (0.3 - 2.5)
fn 0.15 mm/r (0.08 - 0.25)
hex 0.15 mm/r (0.08 - 0.25)
vc 225 m/min (245 - 170)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
Chip breaker(CBMD)
UM
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
2.8 mm
Insert size and shape
(CUTINT_SIZESHAPE)
TC1103
Cutting edge count(CEDC)
3
Inscribed circle diameter(IC)
6.35 mm
Insert shape code(SC)
Triangular
Cutting edge effective length(LE)
10.34 mm
Corner radius
(RE)
0.3969 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
1515
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3+TiN
Insert thickness(S)
3.175 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0012 kg
Insert seat(SSC_M)
11
Insert seat size code imperial view(SSC_N)
1/4
Release date(ValFrom20)
16/06/2008
Release pack id(RELEASEPACK)
08.2
