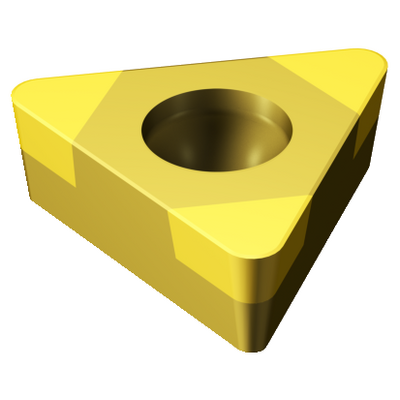

Generic representation
Available
Package quantity: 5
ISO: TCGW090204S01530F 7525
Material Id: 5965431
EAN: 25965431
ANSI: TCGW1.8(1.5)1S0630F 7525
Start values (KAPR 92 deg )
H1.3.Z.HA, Hardness: 60 HRC
h
ap 0.1 mm (0.07 - 0.2)
fn 0.09 mm/r (0.06 - 0.18)
hex 0.06 mm/r (0.04 - 0.12)
vc 140 m/min (145 - 130)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
2.5 mm
Insert size and shape
(CUTINT_SIZESHAPE)
TC0902
Cutting edge count(CEDC)
3
Inscribed circle diameter(IC)
5.5563 mm
Insert shape code(SC)
Triangular
Cutting edge effective length(LE)
2.8 mm
Corner radius
(RE)
0.4 mm
Face land width(BN)
0.15 mm
Face land angle(GB)
30 °
Hand
(HAND)
Neutral
Grade
(GRADE)
7525
Substrate(SUBSTRATE)
BC
Coating(COATING)
PVD TiN
Insert thickness(S)
2.3813 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0009 kg
Insert seat(SSC_M)
09
Insert seat size code imperial view(SSC_N)
7/32
Release date(ValFrom20)
22/02/2011
Release pack id(RELEASEPACK)
11.1
