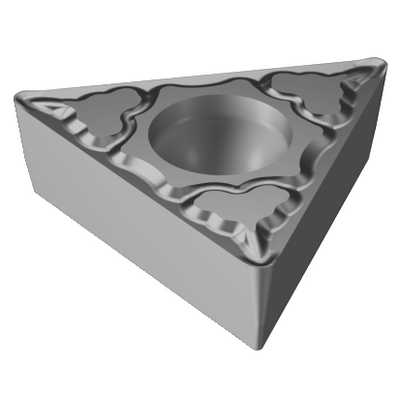

Generic representation
Package quantity: 10
ISO: TCMT 09 02 08-MM 1205
Material Id: 8432319
EAN: 7323227515427
ANSI: TCMT 1.8(1.5)2-MM 1205
Start values (KAPR 91 deg )
S2.0.Z.AG, Hardness: 350 HB
s
ap 0.035 in (0.016 - 0.055)
fn 0.004 in/r (0.003 - 0.006)
hex 0.004 in/r (0.003 - 0.006)
vc 285 sfm (335 - 210)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
MM
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
0.0984 inch
Insert size and shape
(CUTINT_SIZESHAPE)
TC0902
Cutting edge count(CEDC)
3
Inscribed circle diameter(IC)
0.2188 inch
Insert shape code(SC)
Triangular
Cutting edge effective length(LE)
0.3374 inch
Corner radius
(RE)
0.0313 inch
Hand
(HAND)
Neutral
Grade
(GRADE)
1205
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD AlTiN
Insert thickness(S)
0.0938 inch
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0022 lb
Insert seat(SSC_M)
09
Insert seat size code imperial view(SSC_N)
7/32
Release date(ValFrom20)
26/02/2024
Release pack id(RELEASEPACK)
24.1
