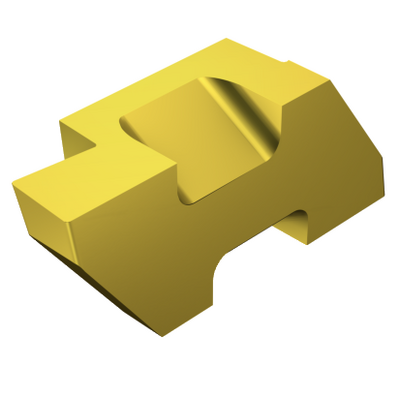

Generic representation
Being replaced by TLG-3105R 1125
Available within a week
Different grade vs. the original product – Please check cutting speed.
Package quantity: 10
ISO: TLG-3105R 4125
Material Id: 5753483
EAN: 80007306
ANSI: TLG-3105R 4125
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Insert mounting style code (metric)(IFS)
Notch clamping
Insert size and shape
(CUTINT_SIZESHAPE)
Top-Lok -style 3R
Cutting edge count(CEDC)
2
Insert seat(SSC_M)
3
Cutting width
(CW)
2.667 mm
Cutting width lower tolerance(CWTOLL)
-0.0254 mm
Cutting width upper tolerance(CWTOLU)
0.0254 mm
Corner radius left(REL)
0.1905 mm
Corner radius right(RER)
0.1905 mm
Cutting depth maximum
(CDX)
3.81 mm
Machine side body angle(BAMS)
0 °
Hand
(HAND)
Right
Grade
(GRADE)
4125
Coating(COATING)
PVD TiAlN+TiN
Insert thickness(S)
8.7376 mm
Clearance angle major(AN)
10 °
Weight of item(WT)
0.0092 kg
Insert seat size code imperial view(SSC_N)
3
Release date(ValFrom20)
24/04/2000
Release pack id(RELEASEPACK)
92.3
