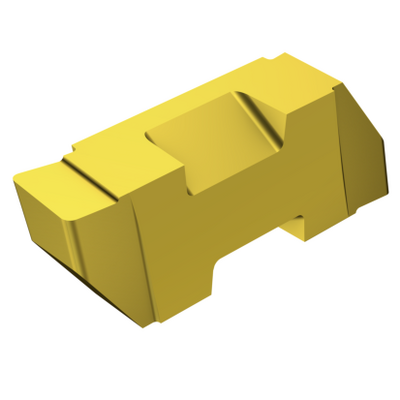

Generic representation
List price: 1 125.00 CZK
Available within a week
Package quantity: 10
ISO: TLGP-3125R 2135
Material Id: 5753311
EAN: 80003538
ANSI: TLGP-3125R 2135
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Insert mounting style code (metric)(IFS)
Notch clamping
Insert size and shape
(CUTINT_SIZESHAPE)
Top-Lok -style 3R
Cutting edge count(CEDC)
2
Insert seat(SSC_M)
3
Cutting width
(CW)
3.175 mm
Cutting width lower tolerance(CWTOLL)
-0.0254 mm
Cutting width upper tolerance(CWTOLU)
0.0254 mm
Corner radius left(REL)
0.1905 mm
Corner radius right(RER)
0.1905 mm
Cutting depth maximum
(CDX)
3.81 mm
Machine side body angle(BAMS)
0 °
Insert rake angle(GAN)
10 °
Hand
(HAND)
Right
Grade
(GRADE)
2135
Coating(COATING)
CVD TiCrN+Al2O3+TiN
Insert thickness(S)
8.7376 mm
Clearance angle major(AN)
10 °
Weight of item(WT)
0.0094 kg
Insert seat size code imperial view(SSC_N)
3
Release date(ValFrom20)
24/04/2000
Release pack id(RELEASEPACK)
93.3
