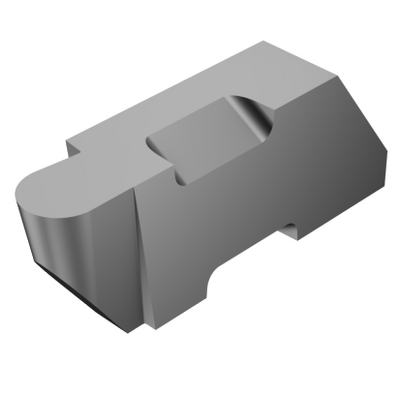

Generic representation
Available within a week
Package quantity: 10
ISO: TLR-3047L H13A
Material Id: 5753440
EAN: 80000588
ANSI: TLR-3047L H13A

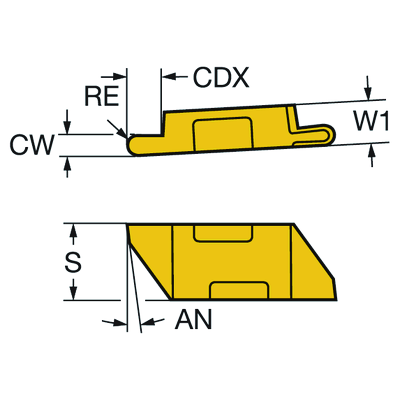

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Insert size and shape
(CUTINT_SIZESHAPE)
Top-Lok -style 3L
Cutting edge count(CEDC)
2
Cutting width
(CW)
2.3876 mm
Cutting width lower tolerance(CWTOLL)
-0.0254 mm
Cutting width upper tolerance(CWTOLU)
0.0254 mm
Corner radius
(RE)
1.1938 mm
Cutting depth maximum
(CDX)
3.81 mm
Machine side body angle(BAMS)
0 °
Hand
(HAND)
Left
Grade
(GRADE)
H13A
Weight of item(WT)
0.008 kg
Release date(ValFrom20)
26/01/1987
Release pack id(RELEASEPACK)
87.1
