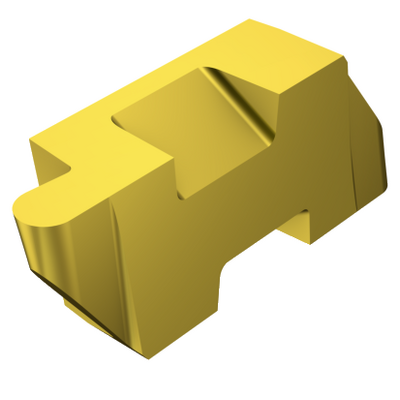

Generic representation
Package quantity: 10
ISO: TLRP-4094R 4125
Material Id: 5753612
EAN: 80007824
ANSI: TLRP-4094R 4125

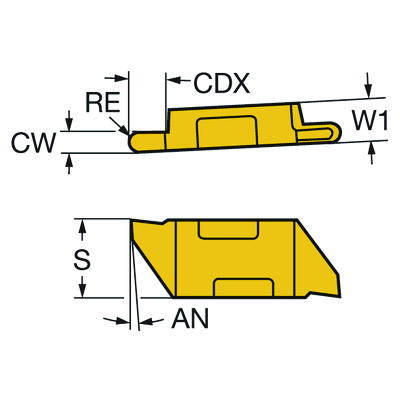

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Insert mounting style code (metric)(IFS)
Notch clamping
Insert size and shape
(CUTINT_SIZESHAPE)
Top-Lok -style 4R
Cutting edge count(CEDC)
2
Insert seat(SSC_M)
4
Cutting width
(CW)
4.7752 mm
Cutting width lower tolerance(CWTOLL)
-0.0254 mm
Cutting width upper tolerance(CWTOLU)
0.0254 mm
Corner radius
(RE)
2.3876 mm
Cutting depth maximum
(CDX)
6.35 mm
Machine side body angle(BAMS)
0 °
Insert rake angle(GAN)
10 °
Hand
(HAND)
Right
Grade
(GRADE)
4125
Coating(COATING)
PVD TiAlN+TiN
Insert thickness(S)
11.5062 mm
Clearance angle major(AN)
10 °
Weight of item(WT)
0.0188 kg
Insert seat size code imperial view(SSC_N)
4
Release date(ValFrom20)
24/04/2000
Release pack id(RELEASEPACK)
92.3
