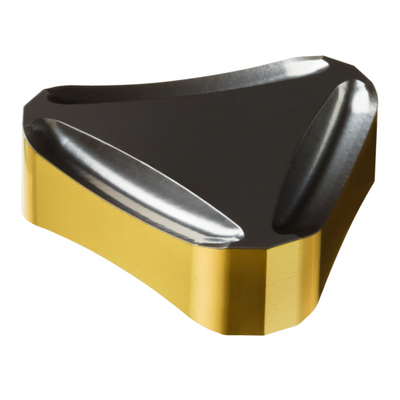

Generic representation
List price: 35.15 GBP
Available within a week
Package quantity: 10
ISO: TNEF 12 04 AN-CA 3330
Material Id: 6428163
EAN: 26428163
ANSI: TNEF 12 04 AN-CA 3330
Start values (KAPR 45 deg )
K2.2.C.UT, Hardness: 245 HB
K
fz 0.24 mm (0.1 - 0.42)
hex 0.17 mm (0.07 - 0.3)
vc 200 m/min (240 - 155)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
K
Chip breaker(CBMD)
CA
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Without fixing hole
Insert size and shape
(CUTINT_SIZESHAPE)
TN1204AN
Cutting edge count(CEDC)
6
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Triangular
Cutting edge effective length(LE)
12 mm
Depth of cut maximum
(APMX)
6 mm
Wiper edge length(BS)
1.5 mm
Wiper edge radius(BSR)
90 mm
Corner radius
(RE)
3 mm
Major cutting edge angle(KRINS)
45 °
Insert rake angle(GAN)
12 °
Hand
(HAND)
Neutral
Grade
(GRADE)
3330
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3+TiN
Insert thickness(S)
4.7625 mm
Weight of item(WT)
0.0107 kg
Insert seat(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
25/02/2014
Release pack id(RELEASEPACK)
14.1
