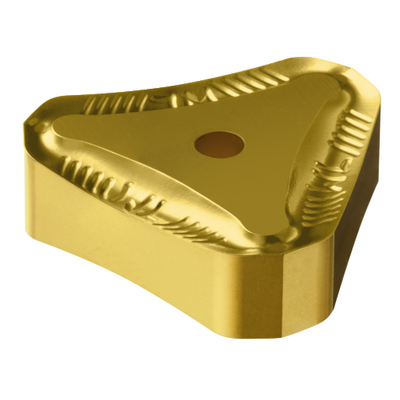

Generic representation
Package quantity: 10
ISO: TNEF 12 04 AN-WL K20W
Material Id: 5753280
EAN: 11309314
ANSI: TNEF 12 04 AN-WL K20W
Start values (KAPR 45 deg )
K2.2.C.UT, Hardness: 245 HB
k
fz 0.009 in (0.004 - 0.017)
hex 0.007 in (0.003 - 0.012)
vc 560 sfm (680 - 435)

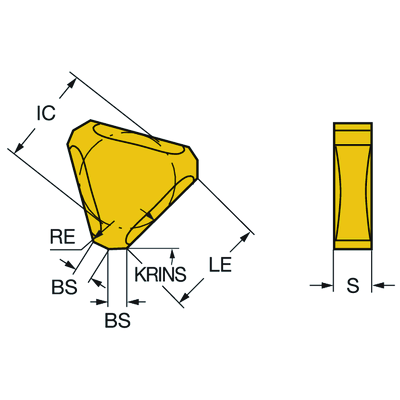

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
WL
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Without fixing hole
Insert size and shape
(CUTINT_SIZESHAPE)
TN1204AN
Cutting edge count(CEDC)
6
Inscribed circle diameter(IC)
0.5 inch
Insert shape code(SC)
Triangular
Cutting edge effective length(LE)
0.4724 inch
Depth of cut maximum
(APMX)
0.2362 inch
Wiper edge length(BS)
0.0689 inch
Wiper edge radius(BSR)
3.5433 inch
Corner radius
(RE)
0.0787 inch
Major cutting edge angle(KRINS)
45 °
Insert rake angle(GAN)
18 °
Hand
(HAND)
Neutral
Grade
(GRADE)
K20W
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCrN+Al2O3+TiN
Insert thickness(S)
0.1875 inch
Weight of item(WT)
0.0235 lb
Insert seat(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
04/12/2000
Release pack id(RELEASEPACK)
01.1
