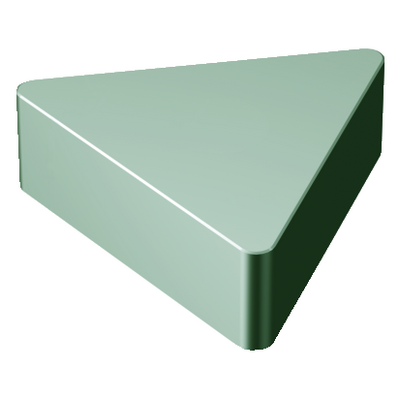

Generic representation
Being replaced by TNGN160408T01020 675
Available
Different grade vs. the original product – Please check cutting speed.
Package quantity: 10
ISO: TNGN160408T01020 670
Material Id: 5753829
EAN: 10169876
ANSI: TNG332T0320 670
Start values (KAPR 92 deg )
S2.0.Z.AG, Hardness: 350 HB
s
ap 1.6 mm (0.1 - 4.8)
fn 0.1 mm/r (0.07 - 0.2)
hex 0.1 mm/r (0.07 - 0.2)
vc 295 m/min (315 - 245)
H1.3.Z.HA, Hardness: 60 HRC
h
ap 1.6 mm (0.1 - 4.8)
fn 0.1 mm/r (0.1 - 0.24)
hex 0.1 mm/r (0.1 - 0.24)
vc 120 m/min (120 - 100)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Without fixing hole
Insert size and shape
(CUTINT_SIZESHAPE)
TN1604
Cutting edge count(CEDC)
6
Inscribed circle diameter(IC)
9.525 mm
Insert shape code(SC)
Triangular
Cutting edge effective length(LE)
15.6978 mm
Corner radius
(RE)
0.7938 mm
Face land width(BN)
0.1 mm
Face land angle(GB)
20 °
Hand
(HAND)
Neutral
Grade
(GRADE)
670
Substrate(SUBSTRATE)
CR
Insert thickness(S)
4.7625 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0021 kg
Insert seat(SSC_M)
16
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
04/12/1989
Release pack id(RELEASEPACK)
89.1
