  • Tools
  • Inserts
  • ISO inserts
  • TNMG 16 04 12-SM S05F

TNMG 16 04 12-SM S05Fcontent_copy

TNMG 16 04 12-SM S05F

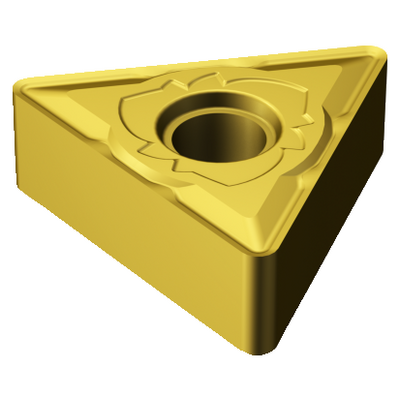

Generic representation
List price: 15.75 GBPfile_copy
Available
Package quantity: 10
ISO: TNMG 16 04 12-SM S05Ffile_copy
Material Id: 5915109file_copy
EAN: 25915109file_copy
ANSI: TNMG 333-SM S05Ffile_copy
Start values  (KAPR  91 deg )
S2.0.Z.AG, Hardness: 350 HB
S
ap 2  mm   (0.3 - 3)
fn 0.25  mm/r   (0.12 - 0.3)
hex 0.25  mm/r   (0.12 - 0.3)
vc 70  m/min   (85 - 60)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)info
S
Search Icon
Chip breaker(CBMD)info
SMSearch Icon
Operation type (CTPT)info
pre-machining with demand on surfaceSearch Icon
Insert mounting style code (metric)(IFS)info
Cylindrical fixing holeSearch Icon
Fixing hole diameter(D1)info
3.81 mmSearch Icon
Insert size and shape (CUTINT_SIZESHAPE)info
TN1604Search Icon
Cutting edge count(CEDC)info
6Search Icon
Inscribed circle diameter(IC)info
9.525 mmSearch Icon
Insert shape code(SC)info
TriangularSearch Icon
Cutting edge effective length(LE)info
13.564 mmSearch Icon
Corner radius (RE)info
1.1906 mmSearch Icon
Hand (HAND)info
NeutralSearch Icon
Grade (GRADE)info
S05FSearch Icon
Substrate(SUBSTRATE)info
HCSearch Icon
Coating(COATING)info
CVD TiCrN+Al2O3+TiNSearch Icon
Insert thickness(S)info
4.7625 mmSearch Icon
Clearance angle major(AN)info
0 °Search Icon
Weight of item(WT)info
0.0065 kgSearch Icon
Insert seat(SSC_M)info
16Search Icon
Insert seat size code imperial view(SSC_N)info
3/8Search Icon
Release date(ValFrom20)info
21/09/2010Search Icon
Release pack id(RELEASEPACK)info
10.2Search Icon
