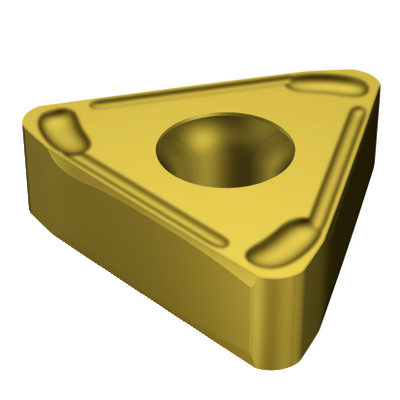

Generic representation
Package quantity: 5
ISO: TNMX 33 09 31-MF 2135
Material Id: 5754792
EAN: 11255952
ANSI: TNMX 33 09 31-MF 2135
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
MF
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
7.93 mm
Insert size and shape
(CUTINT_SIZESHAPE)
TN3309
Insert seat size code imperial view(SSC_N)
3/4
Inscribed circle diameter(IC)
19.05 mm
Insert shape code(SC)
Triangular
Cutting edge effective length(LE)
5 mm
Depth of cut maximum
(APMX)
1.3 mm
Corner chamfer(KCH)
105 °
Cutting edge count(CEDC)
3
Wiper edge length(BS)
21 mm
Corner radius
(RE)
1.5875 mm
Wiper insert(WEP)
Yes
Major cutting edge angle(KRINS)
120 °
Hand
(HAND)
Left
Grade
(GRADE)
2135
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCrN+Al2O3+TiN
Insert thickness(S)
9.525 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0524 kg
Insert seat(SSC_M)
33
Release date(ValFrom20)
04/12/2000
Release pack id(RELEASEPACK)
01.1
