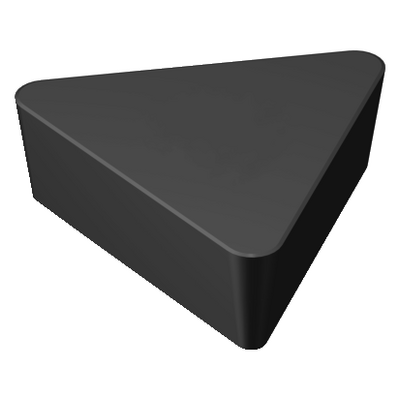

Generic representation
List price: 11.95 GBP
Available
Package quantity: 10
ISO: TPGN110308T01020 650
Material Id: 5754940
EAN: 10519563
ANSI: TPG222T0320 650
Start values (KAPR 92 deg )
S2.0.Z.AG, Hardness: 350 HB
S
ap 1.1 mm (0.1 - 3.3)
fn 0.1 mm/r (0.07 - 0.2)
hex 0.1 mm/r (0.07 - 0.2)
vc 340 m/min (350 - 265)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
K
S
H
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Without fixing hole
Insert size and shape
(CUTINT_SIZESHAPE)
TP1103
Cutting edge count(CEDC)
3
Inscribed circle diameter(IC)
6.35 mm
Insert shape code(SC)
Triangular
Cutting edge effective length(LE)
10.1985 mm
Corner radius
(RE)
0.7938 mm
Face land width(BN)
0.1 mm
Face land angle(GB)
20 °
Hand
(HAND)
Neutral
Grade
(GRADE)
650
Substrate(SUBSTRATE)
CM
Insert thickness(S)
3.175 mm
Clearance angle major(AN)
11 °
Weight of item(WT)
0.0005 kg
Insert seat(SSC_M)
11
Insert seat size code imperial view(SSC_N)
1/4
Release date(ValFrom20)
03/12/1990
Release pack id(RELEASEPACK)
91.1
