Generic representation
Package quantity: 10

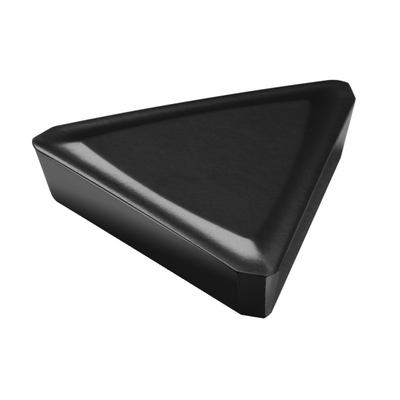

ISO: TPKR 22 04 PD R-WH 3040
Material Id: 5755050
EAN: 11023471
ANSI: TPKR 43P2 R-WH 3040
Start values (KAPR 90 deg )
P2.1.Z.AN, Hardness: 175 HB
p
fz 0.25 mm (0.1 - 0.3)
hex 0.25 mm (0.1 - 0.3)
vc 205 m/min (275 - 185)
K2.2.C.UT, Hardness: 245 HB
k
fz 0.25 mm (0.1 - 0.3)
hex 0.25 mm (0.1 - 0.3)
vc 155 m/min (210 - 140)
H1.3.Z.HA, Hardness: 60 HRC
h
fz 0.25 mm (0.1 - 0.3)
hex 0.25 mm (0.1 - 0.3)
vc 28 m/min (40 - 25)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
WH
Operation type
(CTPT)
heavy
Insert mounting style code (metric)(IFS)
Without fixing hole
Insert size and shape
(CUTINT_SIZESHAPE)
TP2204PD
Cutting edge count(CEDC)
3
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Triangular
Cutting edge effective length(LE)
18 mm
Depth of cut maximum
(APMX)
18 mm
Corner chamfer(KCH)
44 °
Wiper edge length(BS)
1.2 mm
Major cutting edge angle(KRINS)
90 °
Hand
(HAND)
Right
Grade
(GRADE)
3040
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3
Insert thickness(S)
4.7625 mm
Weight of item(WT)
0.0107 kg
Insert seat(SSC_M)
22
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
01/12/1997
Release pack id(RELEASEPACK)
98.1
