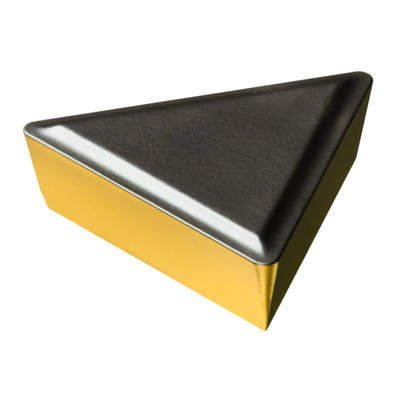

Generic representation
Being replaced by TPMR 22 04 12 4425
Available
Different grade vs. the original product – Please check cutting speed.
Package quantity: 10
ISO: TPMR 22 04 12 4325
Material Id: 6532294
EAN: 26532294
ANSI: TPMR 433 4325
Start values (KAPR 92 deg )
P2.1.Z.AN, Hardness: 175 HB
p
ap 2.5 mm (1 - 4)
fn 0.35 mm/r (0.3 - 0.5)
hex 0.35 mm/r (0.3 - 0.5)
vc 295 m/min (310 - 255)
K2.2.C.UT, Hardness: 245 HB
k
ap 2.5 mm (1 - 4)
fn 0.35 mm/r (0.3 - 0.5)
hex 0.35 mm/r (0.3 - 0.5)
vc 170 m/min (185 - 140)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
53
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Without fixing hole
Insert size and shape
(CUTINT_SIZESHAPE)
TP2204
Cutting edge count(CEDC)
3
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Triangular
Cutting edge effective length(LE)
20.797 mm
Corner radius
(RE)
1.1906 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
4325
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3+TiN
Insert thickness(S)
4.7625 mm
Clearance angle major(AN)
11 °
Weight of item(WT)
0.0109 kg
Insert seat(SSC_M)
22
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
25/02/2014
Release pack id(RELEASEPACK)
14.1
