TPU221FP CD10 content_copy

TPU221FP CD10

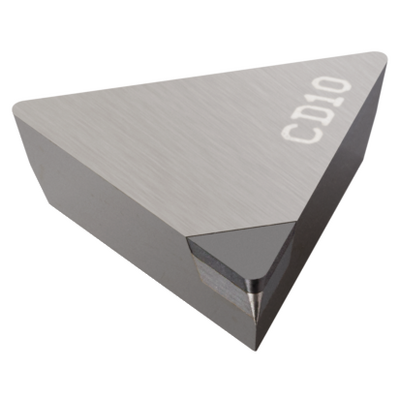

Generic representation
List price: 116.00 GBPfile_copy
Available
Package quantity: 5
ISO: TPUN110304FP CD10file_copy
Material Id: 5755328file_copy
EAN: 10096553file_copy
ANSI: TPU221FP CD10file_copy
Start values  (KAPR  92 deg )
N1.3.C.AG, Hardness: 90 HB
N
ap 0.02  in   (0.004 - 0.087)
fn 0.004  in/r   (0.002 - 0.008)
hex 0.004  in/r   (0.002 - 0.008)
vc 6550  sfm   (8200 - 820)

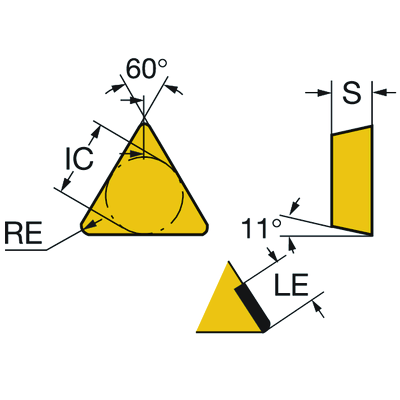

Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)info
N
Search Icon
Chip breaker(CBMD)info
FPSearch Icon
Operation type (CTPT)info
finishingSearch Icon
Insert mounting style code (metric)(IFS)info
Without fixing holeSearch Icon
Insert size and shape (CUTINT_SIZESHAPE)info
TP1103Search Icon
Cutting edge count(CEDC)info
1Search Icon
Inscribed circle diameter(IC)info
0.25 inSearch Icon
Insert shape code(SC)info
TriangularSearch Icon
Cutting edge effective length(LE)info
0.1063 inSearch Icon
Corner radius (RE)info
0.0156 inSearch Icon
Hand (HAND)info
NeutralSearch Icon
Grade (GRADE)info
CD10Search Icon
Substrate(SUBSTRATE)info
DPSearch Icon
Insert thickness(S)info
0.125 inSearch Icon
Clearance angle major(AN)info
11 °Search Icon
Weight of item(WT)info
0.0018 lbSearch Icon
Insert seat(SSC_M)info
11Search Icon
Insert seat size code imperial view(SSC_N)info
1/4Search Icon
Release date(ValFrom20)info
02/11/1987Search Icon
Release pack id(RELEASEPACK)info
87.1Search Icon
