New

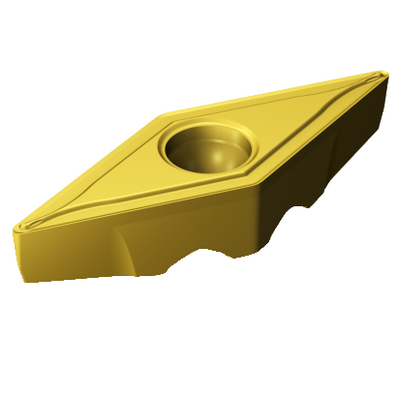

Generic representation
Available
Package quantity: 10
ISO: TR-VB1304-F 1625
Material Id: 8864632
EAN: 7323228974636
ANSI: TR-VB1304-F 1625
Start values (KAPR 93 deg )
P2.1.Z.AN, Hardness: 175 HB
p
ap 0.8 mm (0.1 - 2)
fn 0.15 mm/r (0.06 - 0.35)
hex 0.15 mm/r (0.06 - 0.35)
vc 290 m/min (375 - 205)
M1.0.Z.AQ, Hardness: 200 HB
m
ap 0.8 mm (0.1 - 2)
fn 0.15 mm/r (0.06 - 0.25)
hex 0.15 mm/r (0.06 - 0.25)
vc 190 m/min (210 - 170)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
F
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
40°-60° countersunk hole, rail bottom
Fixing hole diameter(D1)
3.4 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroTurn TR VB13
Cutting edge count(CEDC)
2
Inscribed circle diameter(IC)
8 mm
Insert shape code(SC)
Rhombic 35
Cutting edge effective length(LE)
12.6 mm
Corner radius
(RE)
0.3969 mm
Face land width(BN)
0.07 mm
Face land angle(GB)
0 °
Insert rake angle(GAN)
18 °
Hand
(HAND)
Neutral
Grade
(GRADE)
1625
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN+TiN
Insert thickness(S)
4.525 mm
Clearance angle major(AN)
5 °
Weight of item(WT)
0.0015 kg
Insert seat(SSC_M)
13
Insert seat size code imperial view(SSC_N)
13
Release date(ValFrom20)
28/11/2025
Release pack id(RELEASEPACK)
26.1
