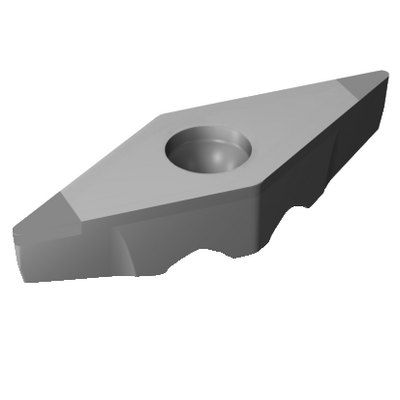

Generic representation
Available
Package quantity: 5
ISO: TR-VB1312EF 7014
Material Id: 7992860
EAN: 7323225661355
ANSI: TR-VB1312EF 7014
Start values (KAPR 93 deg )
S2.0.Z.AG, Hardness: 350 HB
s
ap 0.24 mm (0.1 - 0.36)
fn 0.17 mm/r (0.07 - 0.27)
hex 0.1 mm/r (0.04 - 0.16)
vc 260 m/min (285 - 240)

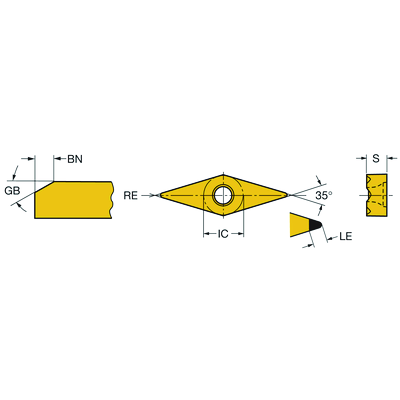

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
EF
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
40°-60° countersunk hole, rail bottom
Fixing hole diameter(D1)
3.4 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroTurn TR VB13
Cutting edge count(CEDC)
2
Inscribed circle diameter(IC)
8 mm
Insert shape code(SC)
Rhombic 35
Cutting edge effective length(LE)
2.13 mm
Corner radius
(RE)
1.191 mm
Insert rake angle(GAN)
0 °
Hand
(HAND)
Neutral
Grade
(GRADE)
7014
Substrate(SUBSTRATE)
BL
Insert thickness(S)
4.525 mm
Clearance angle major(AN)
5 °
Weight of item(WT)
0.0003 kg
Insert seat(SSC_M)
13
Insert seat size code imperial view(SSC_N)
13
Release date(ValFrom20)
25/09/2020
Release pack id(RELEASEPACK)
20.2
