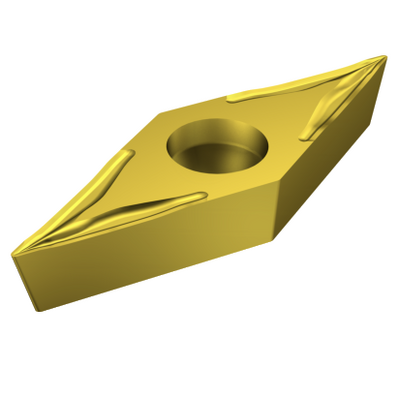

Generic representation
Being replaced by VBGT 16 04 02-UM 1125
Available within a week
Different grade vs. the original product – Please check cutting speed.
Package quantity: 10
ISO: VBGT 16 04 02-UM 1025
Material Id: 5755588
EAN: 11318285
ANSI: VBGT 330-UM 1025
Start values (KAPR 93 deg )
S2.0.Z.AG, Hardness: 350 HB
s
ap 0.5 mm (0.1 - 1.05)
fn 0.05 mm/r (0.02 - 0.08)
hex 0.05 mm/r (0.02 - 0.08)
vc 37 m/min (45 - 33)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
UM
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
4.4 mm
Insert size and shape
(CUTINT_SIZESHAPE)
VB1604
Cutting edge count(CEDC)
2
Inscribed circle diameter(IC)
9.525 mm
Insert shape code(SC)
Rhombic 35
Cutting edge effective length(LE)
16.4063 mm
Corner radius
(RE)
0.2 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
1025
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN+TiN
Insert thickness(S)
4.7625 mm
Clearance angle major(AN)
5 °
Weight of item(WT)
0.009 kg
Insert seat(SSC_M)
16
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
12/08/2002
Release pack id(RELEASEPACK)
02.2
