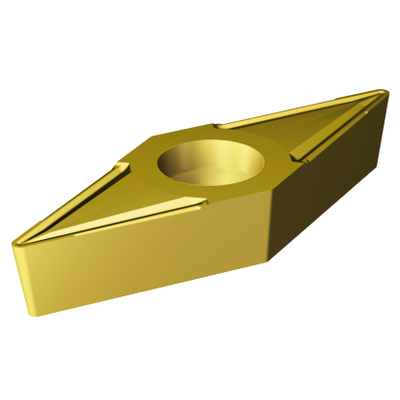

Generic representation
List price: 17.25 GBP
Available
Package quantity: 10
ISO: VBMT 16 04 04-UR 235
Material Id: 5755707
EAN: 10124413
ANSI: VBMT 331-UR 235
Start values (KAPR 93 deg )
P2.1.Z.AN, Hardness: 175 HB
P
ap 2 mm (1 - 4)
fn 0.25 mm/r (0.15 - 0.3)
hex 0.25 mm/r (0.15 - 0.3)
vc 115 m/min (120 - 110)
M1.0.Z.AQ, Hardness: 200 HB
M
ap 2 mm (0.5 - 4)
fn 0.25 mm/r (0.1 - 0.3)
hex 0.25 mm/r (0.1 - 0.3)
vc 130 m/min (170 - 120)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
Chip breaker(CBMD)
UR
Operation type
(CTPT)
roughing
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
4.4 mm
Insert size and shape
(CUTINT_SIZESHAPE)
VB1604
Cutting edge count(CEDC)
2
Inscribed circle diameter(IC)
9.525 mm
Insert shape code(SC)
Rhombic 35
Cutting edge effective length(LE)
16.2063 mm
Corner radius
(RE)
0.3969 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
235
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+TiN
Insert thickness(S)
4.7625 mm
Clearance angle major(AN)
5 °
Weight of item(WT)
0.0076 kg
Insert seat(SSC_M)
16
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
02/11/1987
Release pack id(RELEASEPACK)
87.1
