  • VBMW160408S01020E CB20

VBMW160408S01020E CB20 content_copy

VBMW160408S01020E CB20

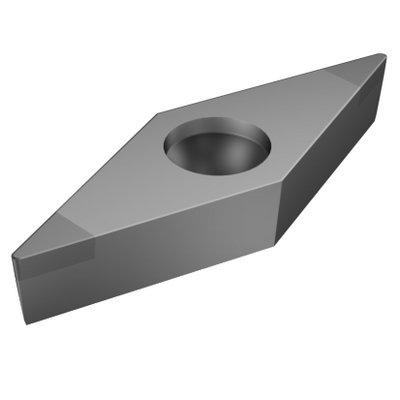

Generic representation
List price: 56.10 GBPfile_copy
Available
Package quantity: 5
ISO: VBMW160408S01020E CB20file_copy
Material Id: 5755930file_copy
EAN: 10532535file_copy
ANSI: VBMW332S0320E CB20file_copy
Start values  (KAPR  93 deg )
H1.3.Z.HA, Hardness: 60 HRC
H
ap 0.15  mm   (0.07 - 0.4)
fn 0.14  mm/r   (0.07 - 0.27)
hex 0.08  mm/r   (0.04 - 0.16)
vc 180  m/min   (185 - 165)

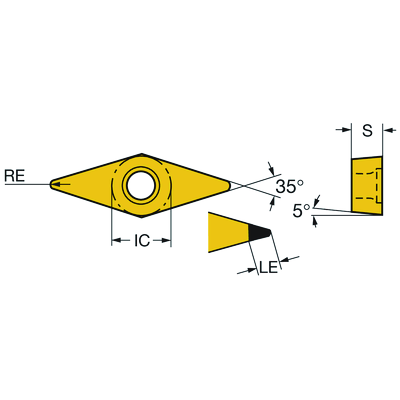

Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)info
H
Search Icon
Operation type (CTPT)info
finishingSearch Icon
Insert mounting style code (metric)(IFS)info
Partly cylindrical, 40-60 deg countersink on one or two sidesSearch Icon
Fixing hole diameter(D1)info
4.4 mmSearch Icon
Insert size and shape (CUTINT_SIZESHAPE)info
VB1604Search Icon
Cutting edge count(CEDC)info
1Search Icon
Inscribed circle diameter(IC)info
9.525 mmSearch Icon
Insert shape code(SC)info
Rhombic 35Search Icon
Cutting edge effective length(LE)info
4.12 mmSearch Icon
Corner radius (RE)info
0.7938 mmSearch Icon
Face land width(BN)info
0.1 mmSearch Icon
Face land angle(GB)info
20 °Search Icon
Hand (HAND)info
NeutralSearch Icon
Grade (GRADE)info
CB20Search Icon
Substrate(SUBSTRATE)info
BLSearch Icon
Insert thickness(S)info
4.7625 mmSearch Icon
Clearance angle major(AN)info
5 °Search Icon
Weight of item(WT)info
0.0077 kgSearch Icon
Insert seat(SSC_M)info
16Search Icon
Insert seat size code imperial view(SSC_N)info
3/8Search Icon
Release date(ValFrom20)info
15/07/1991Search Icon
Release pack id(RELEASEPACK)info
91.3Search Icon
