  • VCEX 11 03 00L-F 1105

VCEX 11 03 00L-F 1105 content_copy

VCEX 11 03 00L-F 1105

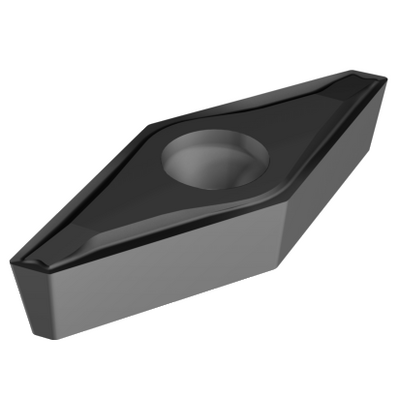

Generic representation
Being replaced by VCEX 11 03 00L-F 1205
Available
Different grade vs. the original product – Please check cutting speed.
List price: 37.25 GBPfile_copy
Available
Package quantity: 10
ISO: VCEX 11 03 00L-F 1105file_copy
Material Id: 5755912file_copy
EAN: 12097492file_copy
ANSI: VCEX 22(00)L-F 1105file_copy
Start values  (KAPR  93 deg )
S2.0.Z.AG, Hardness: 350 HB
S
ap 1  mm   (0.03 - 3)
fn 0.05  mm/r   (0.01 - 0.14)
hex 0.05  mm/r   (0.01 - 0.14)
vc 80  m/min   (80 - 50)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)info
M
S
Search Icon
Chip breaker(CBMD)info
FSearch Icon
Operation type (CTPT)info
finishingSearch Icon
Insert mounting style code (metric)(IFS)info
Partly cylindrical, 40-60 deg countersink on one or two sidesSearch Icon
Fixing hole diameter(D1)info
2.8 mmSearch Icon
Insert size and shape (CUTINT_SIZESHAPE)info
VC1103Search Icon
Cutting edge count(CEDC)info
2Search Icon
Inscribed circle diameter(IC)info
6.35 mmSearch Icon
Insert shape code(SC)info
Rhombic 35Search Icon
Cutting edge effective length(LE)info
11.0709 mmSearch Icon
Corner radius (RE)info
0.02 mmSearch Icon
Wiper insert(WEP)info
YesSearch Icon
Major cutting edge angle(KRINS)info
93 °Search Icon
Hand (HAND)info
Left handSearch Icon
Grade (GRADE)info
1105Search Icon
Substrate(SUBSTRATE)info
HCSearch Icon
Coating(COATING)info
PVD TiAlNSearch Icon
Insert thickness(S)info
3.175 mmSearch Icon
Clearance angle major(AN)info
7 °Search Icon
Weight of item(WT)info
0.0003 kgSearch Icon
Insert seat(SSC_M)info
11Search Icon
Insert seat size code imperial view(SSC_N)info
1/4Search Icon
Release date(ValFrom20)info
30/01/2006Search Icon
Release pack id(RELEASEPACK)info
06.1Search Icon
