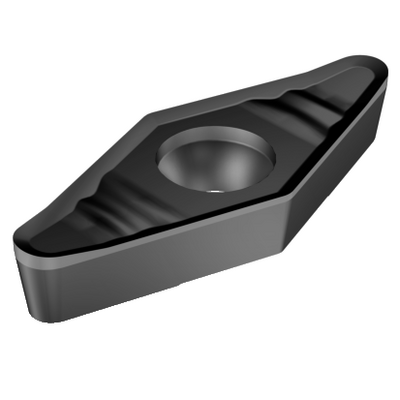

Generic representation
Being replaced by VCGX 11 03 04-AL 1205
Available
Different grade vs. the original product – Please check cutting speed.
List price: 29.65 GBP
Available
Package quantity: 10
ISO: VCGX 11 03 04-AL 1105
Material Id: 6075407
EAN: 26075407
ANSI: VCGX 221-AL 1105
Start values (KAPR 93 deg )
M1.0.Z.AQ, Hardness: 200 HB
M
ap 0.8 mm (0.3 - 2)
fn 0.06 mm/r (0.02 - 0.08)
hex 0.06 mm/r (0.02 - 0.08)
vc 240 m/min (255 - 230)
S2.0.Z.AG, Hardness: 350 HB
S
ap 0.8 mm (0.3 - 1)
fn 0.06 mm/r (0.02 - 0.08)
hex 0.06 mm/r (0.02 - 0.08)
vc 80 m/min (80 - 75)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
M
S
Chip breaker(CBMD)
AL
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
2.8 mm
Insert size and shape
(CUTINT_SIZESHAPE)
VC1103
Cutting edge count(CEDC)
2
Inscribed circle diameter(IC)
6.35 mm
Insert shape code(SC)
Rhombic 35
Cutting edge effective length(LE)
10.6709 mm
Corner radius
(RE)
0.3969 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
1105
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN
Insert thickness(S)
3.175 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0012 kg
Insert seat(SSC_M)
11
Insert seat size code imperial view(SSC_N)
1/4
Release date(ValFrom20)
25/02/2012
Release pack id(RELEASEPACK)
12.1
