  • VNGA160404S01030A 7015

VNGA160404S01030A 7015 content_copy

VNGA160404S01030A 7015

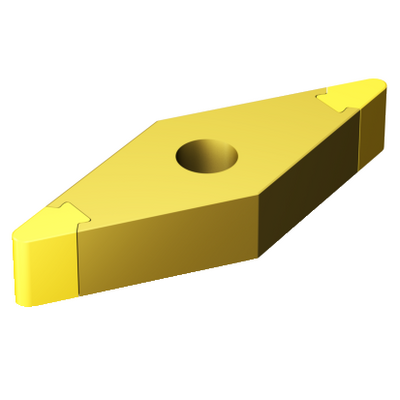

Generic representation
List price: 147.00 GBPfile_copy
Out of stock
Package quantity: 5
ISO: VNGA160404S01030A 7015file_copy
Material Id: 5755999file_copy
EAN: 12010972file_copy
ANSI: VNGA331S0330A 7015file_copy
Start values  (KAPR  93 deg )
H1.3.Z.HA, Hardness: 60 HRC
H
ap 0.1  mm   (0.07 - 0.2)
fn 0.09  mm/r   (0.06 - 0.18)
hex 0.06  mm/r   (0.04 - 0.12)
vc 185  m/min   (195 - 170)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)info
H
Search Icon
Operation type (CTPT)info
finishingSearch Icon
Insert mounting style code (metric)(IFS)info
Cylindrical fixing holeSearch Icon
Fixing hole diameter(D1)info
3.81 mmSearch Icon
Insert size and shape (CUTINT_SIZESHAPE)info
VN1604Search Icon
Cutting edge count(CEDC)info
4Search Icon
Inscribed circle diameter(IC)info
9.525 mmSearch Icon
Insert shape code(SC)info
Rhombic 35Search Icon
Cutting edge effective length(LE)info
4.4 mmSearch Icon
Corner radius (RE)info
0.3969 mmSearch Icon
Face land width(BN)info
0.1 mmSearch Icon
Face land angle(GB)info
30 °Search Icon
Hand (HAND)info
NeutralSearch Icon
Grade (GRADE)info
7015Search Icon
Substrate(SUBSTRATE)info
BCSearch Icon
Coating(COATING)info
PVD TiNSearch Icon
Insert thickness(S)info
4.7625 mmSearch Icon
Clearance angle major(AN)info
0 °Search Icon
Weight of item(WT)info
0.0083 kgSearch Icon
Insert seat(SSC_M)info
16Search Icon
Insert seat size code imperial view(SSC_N)info
3/8Search Icon
Release date(ValFrom20)info
02/01/2006Search Icon
Release pack id(RELEASEPACK)info
06.1Search Icon
