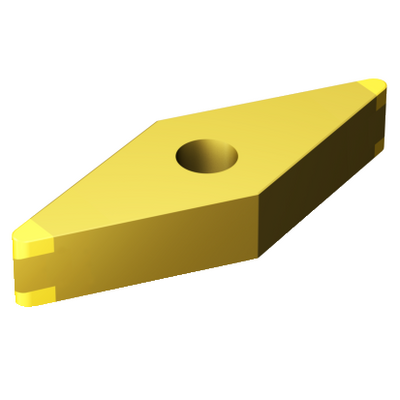

Generic representation
List price: 127.00 GBP
Out of stock
Package quantity: 5
ISO: VNGA160408S01525H 7105
Material Id: 7190840
EAN: 7323221525705
ANSI: VNGA332S0525H 7105
Start values (KAPR 93 deg )
H1.3.Z.HA, Hardness: 60 HRC
H
ap 0.006 in (0.003 - 0.016)
fn 0.005 in/r (0.003 - 0.011)
hex 0.003 in/r (0.002 - 0.006)
vc 660 sfm (710 - 590)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
H
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
0.15 in
Insert size and shape
(CUTINT_SIZESHAPE)
VN1604
Cutting edge count(CEDC)
4
Inscribed circle diameter(IC)
0.375 in
Insert shape code(SC)
Rhombic 35
Cutting edge effective length(LE)
0.0984 in
Corner radius
(RE)
0.0315 in
Face land width(BN)
0.0059 in
Face land angle(GB)
25 °
Insert rake angle(GAN)
0 °
Hand
(HAND)
Neutral
Grade
(GRADE)
7105
Substrate(SUBSTRATE)
BC
Coating(COATING)
PVD TiN
Insert thickness(S)
0.1875 in
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0125 lb
Insert seat(SSC_M)
16
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
22/09/2016
Release pack id(RELEASEPACK)
16.2
