  • Tools
  • Inserts
  • ISO inserts
  • VNMG 16 04 04-SF S205

VNMG 16 04 04-SF S205content_copy

VNMG 16 04 04-SF S205

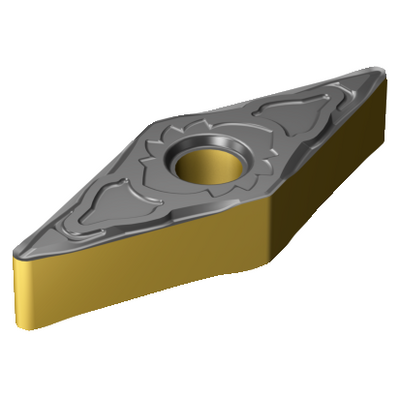

Generic representation
List price: 33.85 GBPfile_copy
Available
Package quantity: 10
ISO: VNMG 16 04 04-SF S205file_copy
Material Id: 8003591file_copy
EAN: 7323225712675file_copy
ANSI: VNMG331-SF S205file_copy
Start values  (KAPR  93 deg )
S2.0.Z.AG, Hardness: 350 HB
S
ap 0.4  mm   (0.15 - 1.5)
fn 0.12  mm/r   (0.08 - 0.2)
hex 0.12  mm/r   (0.08 - 0.2)
vc 100  m/min   (105 - 90)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)info
S
Search Icon
Chip breaker(CBMD)info
SFSearch Icon
Operation type (CTPT)info
finishingSearch Icon
Insert mounting style code (metric)(IFS)info
Cylindrical fixing holeSearch Icon
Fixing hole diameter(D1)info
3.81 mmSearch Icon
Insert size and shape (CUTINT_SIZESHAPE)info
VN1604Search Icon
Cutting edge count(CEDC)info
4Search Icon
Inscribed circle diameter(IC)info
9.525 mmSearch Icon
Insert shape code(SC)info
Rhombic 35Search Icon
Cutting edge effective length(LE)info
16.206 mmSearch Icon
Corner radius (RE)info
0.3969 mmSearch Icon
Hand (HAND)info
NeutralSearch Icon
Grade (GRADE)info
S205Search Icon
Substrate(SUBSTRATE)info
HCSearch Icon
Coating(COATING)info
CVD TiCN+Al2O3+TiNSearch Icon
Insert thickness(S)info
4.7625 mmSearch Icon
Clearance angle major(AN)info
0 °Search Icon
Weight of item(WT)info
0.0089 kgSearch Icon
Insert seat(SSC_M)info
16Search Icon
Insert seat size code imperial view(SSC_N)info
3/8Search Icon
Release date(ValFrom20)info
19/02/2021Search Icon
Release pack id(RELEASEPACK)info
21.1Search Icon
