Generic representation
Package quantity: 5
ISO: WNGA080412S01525H 7115
Material Id: 7190852
EAN: 7323221525828
ANSI: WNGA433S0525H 7115
Start values (KAPR 95 deg )
H1.3.Z.HA, Hardness: 60 HRC
h
ap 0.2 mm (0.07 - 0.6)
fn 0.16 mm/r (0.07 - 0.33)
hex 0.09 mm/r (0.04 - 0.18)
vc 175 m/min (195 - 155)

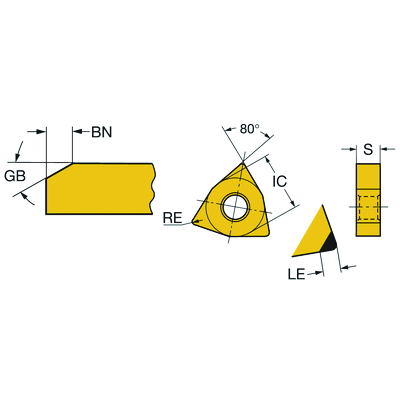

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
5.156 mm
Insert size and shape
(CUTINT_SIZESHAPE)
WN0804
Cutting edge count(CEDC)
6
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Trigon 80
Cutting edge effective length(LE)
2.42 mm
Corner radius
(RE)
1.2 mm
Face land width(BN)
0.15 mm
Face land angle(GB)
25 °
Insert rake angle(GAN)
0 °
Hand
(HAND)
Neutral
Grade
(GRADE)
7115
Substrate(SUBSTRATE)
BC
Coating(COATING)
PVD TiN
Insert thickness(S)
4.7625 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0054 kg
Insert seat(SSC_M)
08
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
22/09/2016
Release pack id(RELEASEPACK)
16.2
