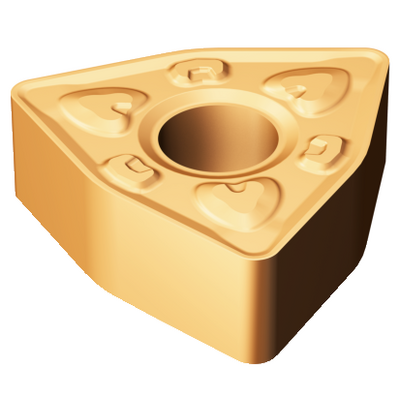

Generic representation
Package quantity: 10
ISO: WNMG 06 04 08-XMR GC15
Material Id: 6353754
EAN: 26353754
ANSI: WNMG 332-XMR GC15
Start values (KAPR 95 deg )
M1.0.Z.AQ, Hardness: 200 HB
m
ap 2.5 mm (0.5 - 4)
fn 0.3 mm/r (0.15 - 0.4)
hex 0.3 mm/r (0.15 - 0.4)
vc 140 m/min (190 - 120)
S2.0.Z.AG, Hardness: 350 HB
s
ap 2.5 mm (0.5 - 4)
fn 0.3 mm/r (0.15 - 0.4)
hex 0.3 mm/r (0.15 - 0.4)
vc 16 m/min (38 - 9.5)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
XMR
Operation type
(CTPT)
roughing
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
3.81 mm
Insert size and shape
(CUTINT_SIZESHAPE)
WN0604
Cutting edge count(CEDC)
6
Inscribed circle diameter(IC)
9.525 mm
Insert shape code(SC)
Trigon 80
Cutting edge effective length(LE)
5.7155 mm
Corner radius
(RE)
0.7938 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
GC15
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN+TiAlN
Insert thickness(S)
4.7625 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0048 kg
Insert seat(SSC_M)
06
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
20/02/2013
Release pack id(RELEASEPACK)
13.1
