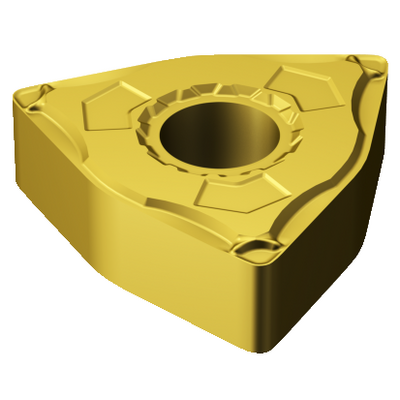

Generic representation
Being replaced by WNMG 08 04 08-LC 1625
Available
Different grade vs. the original product – Please check cutting speed.
Package quantity: 10
ISO: WNMG 08 04 08-LC 1525
Material Id: 5756503
EAN: 12170981
ANSI: WNMG 432-LC 1525
Start values (KAPR 95 deg )
P2.1.Z.AN, Hardness: 175 HB
p
ap 0.5 mm (0.2 - 1.5)
fn 0.22 mm/r (0.11 - 0.32)
hex 0.2 mm/r (0.1 - 0.3)
vc 260 m/min (330 - 220)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
LC
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
5.156 mm
Insert size and shape
(CUTINT_SIZESHAPE)
WN0804
Cutting edge count(CEDC)
6
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Trigon 80
Cutting edge effective length(LE)
7.8873 mm
Corner radius
(RE)
0.7938 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
1525
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiCN+TiN
Insert thickness(S)
4.7625 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0029 kg
Insert seat(SSC_M)
08
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
14/08/2006
Release pack id(RELEASEPACK)
06.2
