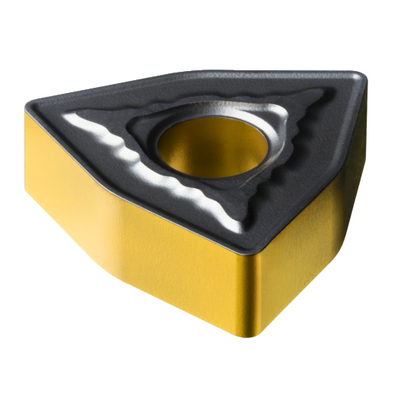

Generic representation
Package quantity: 10
ISO: WNMG 08 04 08-MR 4415
Material Id: 8021213
EAN: 7323225795845
ANSI: WNMG 432-MR 4415
Start values (KAPR 95 deg )
P2.1.Z.AN, Hardness: 175 HB
p
ap 3.5 mm (1.5 - 5)
fn 0.5 mm/r (0.35 - 0.55)
hex 0.5 mm/r (0.35 - 0.55)
vc 290 m/min (325 - 280)
K2.2.C.UT, Hardness: 245 HB
k
ap 3 mm (2 - 5)
fn 0.35 mm/r (0.3 - 0.47)
hex 0.35 mm/r (0.3 - 0.47)
vc 235 m/min (245 - 220)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
MR
Operation type
(CTPT)
roughing
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
5.156 mm
Insert size and shape
(CUTINT_SIZESHAPE)
WN0804
Cutting edge count(CEDC)
6
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Trigon 80
Cutting edge effective length(LE)
7.8873 mm
Corner radius
(RE)
0.7938 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
4415
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3+TiN
Insert thickness(S)
4.7625 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0086 kg
Insert seat(SSC_M)
08
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
24/09/2021
Release pack id(RELEASEPACK)
21.2
