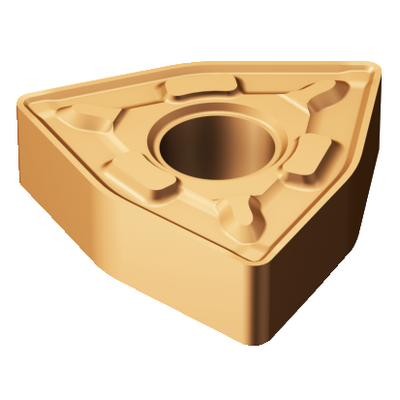

Generic representation
List price: 16.00 GBP
Available
Package quantity: 10
ISO: WNMG 08 04 12-MRR 1115
Material Id: 6293038
EAN: 26293038
ANSI: WNMG 433-MRR 1115
Start values (KAPR 95 deg )
M1.0.Z.AQ, Hardness: 200 HB
M
ap 4 mm (1.2 - 5)
fn 0.4 mm/r (0.25 - 0.65)
hex 0.4 mm/r (0.25 - 0.65)
vc 120 m/min (155 - 90)
S2.0.Z.AG, Hardness: 350 HB
S
ap 3 mm (1.2 - 4)
fn 0.35 mm/r (0.25 - 0.55)
hex 0.35 mm/r (0.25 - 0.55)
vc 12 m/min (21 - 5)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
M
S
Chip breaker(CBMD)
MRR
Operation type
(CTPT)
roughing
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
5.156 mm
Insert size and shape
(CUTINT_SIZESHAPE)
WN0804
Cutting edge count(CEDC)
6
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Trigon 80
Cutting edge effective length(LE)
7.4873 mm
Corner radius
(RE)
1.1906 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
1115
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN+TiAlN
Insert thickness(S)
4.7625 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0089 kg
Insert seat(SSC_M)
08
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
20/02/2013
Release pack id(RELEASEPACK)
13.1
