WNMG433-SM S205content_copy

WNMG433-SM S205

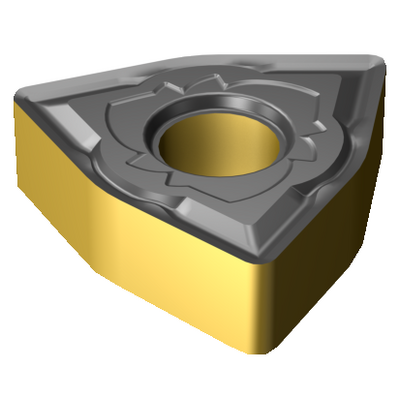

Generic representation
List price: 20.35 GBPfile_copy
Available
Package quantity: 10
ISO: WNMG 08 04 12-SM S205file_copy
Material Id: 8003642file_copy
EAN: 7323225713184file_copy
ANSI: WNMG433-SM S205file_copy
Start values  (KAPR  95 deg )
S2.0.Z.AG, Hardness: 350 HB
S
ap 0.079  in   (0.012 - 0.138)
fn 0.011  in/r   (0.005 - 0.015)
hex 0.011  in/r   (0.005 - 0.015)
vc 250  sfm   (330 - 215)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)info
S
Search Icon
Chip breaker(CBMD)info
SMSearch Icon
Operation type (CTPT)info
pre-machining with demand on surfaceSearch Icon
Insert mounting style code (metric)(IFS)info
Cylindrical fixing holeSearch Icon
Fixing hole diameter(D1)info
0.203 inSearch Icon
Insert size and shape (CUTINT_SIZESHAPE)info
WN0804Search Icon
Cutting edge count(CEDC)info
6Search Icon
Inscribed circle diameter(IC)info
0.5 inSearch Icon
Insert shape code(SC)info
Trigon 80Search Icon
Cutting edge effective length(LE)info
0.2948 inSearch Icon
Corner radius (RE)info
0.0469 inSearch Icon
Hand (HAND)info
NeutralSearch Icon
Grade (GRADE)info
S205Search Icon
Substrate(SUBSTRATE)info
HCSearch Icon
Coating(COATING)info
CVD TiCN+Al2O3+TiNSearch Icon
Insert thickness(S)info
0.1875 inSearch Icon
Clearance angle major(AN)info
0 °Search Icon
Weight of item(WT)info
0.0202 lbSearch Icon
Insert seat(SSC_M)info
08Search Icon
Insert seat size code imperial view(SSC_N)info
1/2Search Icon
Release date(ValFrom20)info
19/02/2021Search Icon
Release pack id(RELEASEPACK)info
21.1Search Icon
