  • WPMT 02 01 04-MF 2025

WPMT 02 01 04-MF 2025content_copy

WPMT 02 01 04-MF 2025

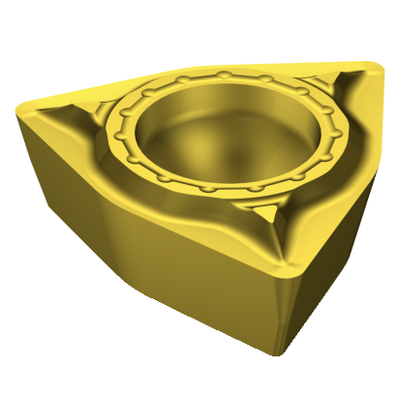

Generic representation
List price: 11.45 GBPfile_copy
Available within a week
Package quantity: 10
ISO: WPMT 02 01 04-MF 2025file_copy
Material Id: 5757202file_copy
EAN: 11369923file_copy
ANSI: WPMT 1.2(1)1-MF 2025file_copy
Start values  (KAPR  95 deg )
M1.0.Z.AQ, Hardness: 200 HB
M
ap 0.3  mm   (0.1 - 0.9)
fn 0.07  mm/r   (0.05 - 0.12)
hex 0.07  mm/r   (0.05 - 0.12)
vc 250  m/min   (250 - 230)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)info
M
Search Icon
Chip breaker(CBMD)info
MFSearch Icon
Operation type (CTPT)info
finishingSearch Icon
Insert mounting style code (metric)(IFS)info
Partly cylindrical, 40-60 deg countersink on one or two sidesSearch Icon
Fixing hole diameter(D1)info
2.2 mmSearch Icon
Insert size and shape (CUTINT_SIZESHAPE)info
WP0201Search Icon
Cutting edge count(CEDC)info
3Search Icon
Inscribed circle diameter(IC)info
3.9688 mmSearch Icon
Insert shape code(SC)info
Trigon 80Search Icon
Cutting edge effective length(LE)info
2.2062 mmSearch Icon
Corner radius (RE)info
0.3969 mmSearch Icon
Hand (HAND)info
NeutralSearch Icon
Grade (GRADE)info
2025Search Icon
Substrate(SUBSTRATE)info
HCSearch Icon
Coating(COATING)info
CVD TiCN+Al2O3+TiNSearch Icon
Insert thickness(S)info
1.5875 mmSearch Icon
Clearance angle major(AN)info
11 °Search Icon
Weight of item(WT)info
0.0004 kgSearch Icon
Insert seat(SSC_M)info
02Search Icon
Insert seat size code imperial view(SSC_N)info
5/32Search Icon
Release date(ValFrom20)info
03/12/2001Search Icon
Release pack id(RELEASEPACK)info
03.2Search Icon
