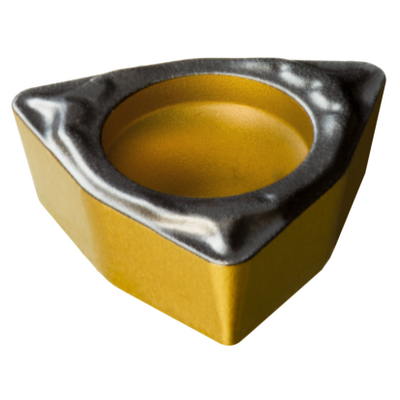

Generic representation
Package quantity: 10
ISO: WPMT 02 01 04-PF 1515
Material Id: 5757204
EAN: 12346460
ANSI: WPMT 1.2(1)1-PF 1515
Start values (KAPR 95 deg )
P2.1.Z.AN, Hardness: 175 HB
p
ap 0.3 mm (0.1 - 0.9)
fn 0.07 mm/r (0.03 - 0.12)
hex 0.07 mm/r (0.03 - 0.12)
vc 305 m/min (305 - 290)
M1.0.Z.AQ, Hardness: 200 HB
m
ap 0.3 mm (0.1 - 0.9)
fn 0.07 mm/r (0.03 - 0.12)
hex 0.07 mm/r (0.03 - 0.12)
vc 240 m/min (240 - 235)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
PF
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
2.2 mm
Insert size and shape
(CUTINT_SIZESHAPE)
WP0201
Cutting edge count(CEDC)
3
Inscribed circle diameter(IC)
3.9688 mm
Insert shape code(SC)
Trigon 80
Cutting edge effective length(LE)
2.2062 mm
Corner radius
(RE)
0.3969 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
1515
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3+TiN
Insert thickness(S)
1.5875 mm
Clearance angle major(AN)
11 °
Weight of item(WT)
0.001 kg
Insert seat(SSC_M)
02
Insert seat size code imperial view(SSC_N)
5/32
Release date(ValFrom20)
08/09/2008
Release pack id(RELEASEPACK)
08.2
