BR20D-71TC16F-C5M
BR20D-71TC16F-C5M
Generic representation
Package quantity: 1
ISO: BR20D-71TC16F-C5M
Material Id: 7591855
EAN: 7323223833440
ANSI: BR20D-71TC16F-C5M

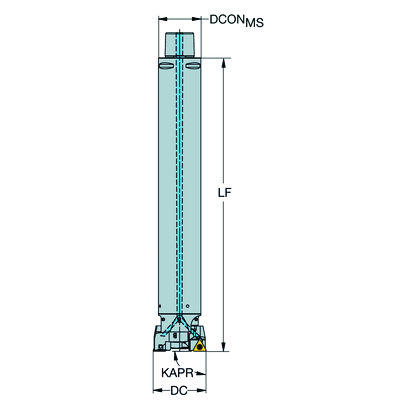

Technical illustrations
Product data
Minimum cutting diameter(DCN)
55 mm
Maximum cutting diameter(DCX)
71 mm
Maximum adjustment limit(ADJLX)
8 mm
Tool cutting edge angle
(KAPR)
90 °
Cutting item count(CICT)
2
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
TCMT 16T308
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C5
Silent Tools™
(DPC)
Yes
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant pressure(CP)
70 bar
Connection diameter machine side(DCONMS)
50 mm
Standard number(STDNO)
ISO26623-1
Functional length(LF)
300 mm
Overall length(OAL)
330 mm
Torque(TQ)
3 Nm
Body material
(BMC)
Steel
Weight of item(WT)
5.08 kg
Insert seat size code imperial view(SSC_N)
3/8
Insert seat(SSC_M)
16
Release date(ValFrom20)
22/09/2018
Release pack id(RELEASEPACK)
18.2
