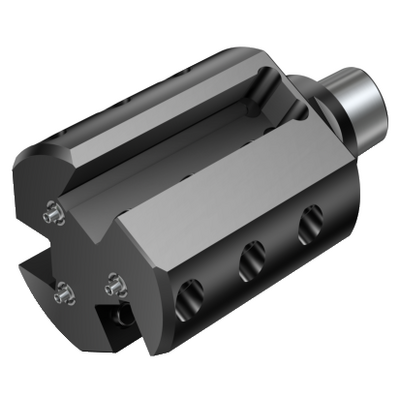

Generic representation
Package quantity: 1
ISO: C5-ASHR3-36123-20
Material Id: 5728601
EAN: 11783262
ANSI: C5-ASHR3-36123-20

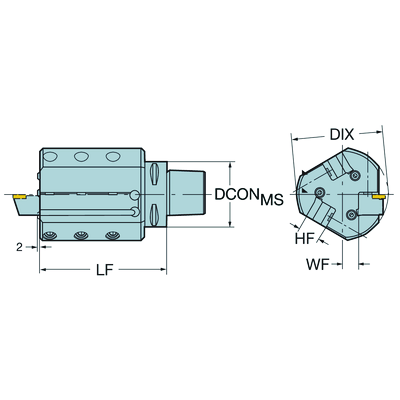

Technical illustrations
Product data
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C5
Connection - workpiece side
(ADINTWS)
Rectangular shank -metric: 20 x 20
Workpiece side connection count(CCONWS)
3
Workpiece side body angle
(BAWS)
0 °
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant exit style(CXSC)
axial inclined exit with nozzle, adjustable
Body material
(BMC)
Steel
Coolant pressure(CP)
80 bar
Connection diameter machine side(DCONMS)
50 mm
Functional diameter(DFC)
35 mm
Protruding length(LPR)
123 mm
Functional length(LF)
123 mm
Functional width(WF)
16 mm
Functional height(HF)
20 mm
Overall length(OAL)
153 mm
Maximum tool changer interference diameter(DIX)
90 mm
Weight of item(WT)
3.66 kg
Release date(ValFrom20)
26/01/2004
Release pack id(RELEASEPACK)
04.1
