DS20-0608-C-L5 1144file_copy

DS20-0608-C-L5 1144

CoroDrill® DS20, insert for drillingchevron_right

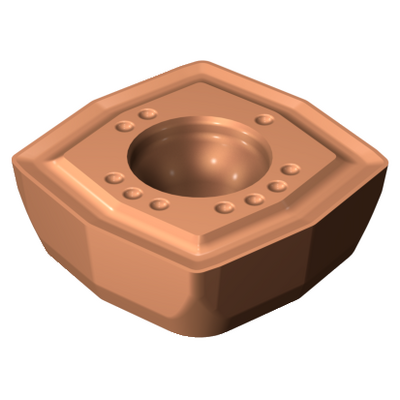

Generic representation

Available

Package quantity: 5

ISO: DS20-0608-C-L5 1144file_copy

Material Id: 7549982file_copy

EAN: 7323223650450file_copy

ANSI: DS20-0608-C-L5 1144file_copy

Technical illustrations

Generic representation

Product data

MetricInch

Workpiece material(s)(TMC1ISO)info

Insert usage code(INSUC)info

Chip breaker(CBMD)info

Insert mounting style code(IFS)info

Partly cylindrical, 40-60 deg countersink on one or two sides

Insert size and shape (CUTINT_SIZESHAPE)info

CoroDrill DS20-0608-C

Cutting edge count(CEDC)info

Inscribed circle diameter(IC)info

17.46 mm

Corner radius (RE)info

0.35 mm

Insert rake angle(GAN)info

2.5 °

Grade (GRADE)info

1144

Substrate(SUBSTRATE)info

Coating(COATING)info

PVD TiAlN+TiAlN

Insert thickness(S)info

3.9 mm

Weight of item(WT)info

0.0104 kg

Insert seat(SSC_M)info

06C

Release date(ValFrom20)info

01/05/2020

Release pack id(RELEASEPACK)info

20.2
