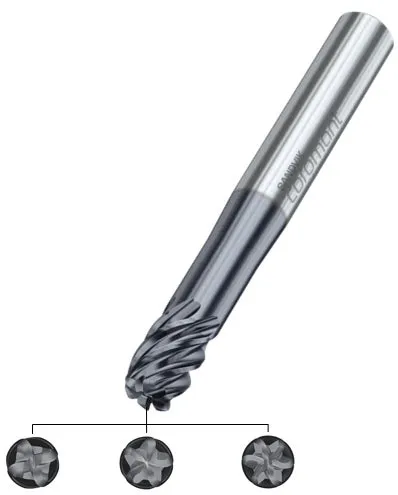

CoroMill® Plura barrel for ISO S profiling
Maximizing profiling performance
| CAPP family | M284 |
| Input | Metric, imperial |
| Test tools functionality | Up to five pieces |
| User level | Basic, advanced |
| Ball nose radius (RBN) | 4.00–25.4 mm (0.1575–1.0 inch) |
| Number of flutes (ZEFP) | 4, 5, 6 |
| R1 corner radius | 0.2–3 mm (0.008–0.118 inch) |
| R2 barrel radius | 6–245 mm (0.236–9.65 inch) |
| Cutting length (APMX) | 0.8 × DC |
| Usable length (LU ) | Up to 6 × DC |
| Conical part length (LB) | Up to 15 × DC |
| Shank (DMM) | Cylindrical-HA, Weldon-HB |
| Shank (DCON) | 4–32 mm (0.1575–1.259 inch) |
| Coolant | External |
| Grade | T2CH, 1745 (Ti) R2AH, 1710 (Ni) H10F, 1730 (Multi) |
| Special tolerance | LU, LF, form tolerance |
| Advanced user customization | Rake angle, edge rounding, cylindrical land and multi-material grade |
ISO application area
Tailor Made® grade options
| P | M | K | N | S | H | Wet | Dry | |
| T2CH | + | ++ | Yes | No | ||||
| 1745 | + | ++ | Yes | No | ||||
| 1745 Uncoated | + | Yes | No | |||||
| R2AH | ++ | + | Yes | No | ||||
| 1710 | ++ | + | Yes | No | ||||
| 1730 | ++ | + | + | Yes | No | |||
| H10F | + | ++ | Yes | No |
Advanced engineered
When Tailor Made® does not meet the demands of your specific component feature, we offer Advanced Engineered end mills. Based on our expertise, and with your cooperation, we can engineer, design and manufacture a bespoke product suited to your most complex application needs.
