CoroCut® 2
Assortment
Success stories
How to use

CoroCut® 2

Versatile parting and grooving

  • Wide assortment available for parting, grooving, profiling and turning
  • Cutting-edge inserts with wear resistant grades ensure high edge-line quality, excellent surface finish and long tool life
  • Tools with precision coolant and robust clamping deliver stable machining and secure processes
  • Reliable and productive tooling that drives both cost-effectiveness and resource efficiency

Operation(s)
Grooving, Parting, External turning, Internal turning
Cutting width(s)
0.0591–0.315 inch
Workpiece material(s)
P
M
K
N
S

Developed to meet the specific needs of parting and grooving applications, CoroCut® 2 brings a new level of process security and productivity to your machining. With this versatile tool concept, you’ll get the stability you need, while keeping cost per component down and metal cutting efficiency up.

Versatility

  • Geometries covering all parting and grooving applications
  • Grades for a wide range of workpiece materials
  • Tool holders available for all common machines

Cost efficiency

  • First choice for cost-efficient machining in applications where it is possible to use two-edged inserts
  • Two edges provide more tool life per insert compared to one-edged concepts designed for one specific application

Secure and efficient machining

  • Process security and productivity are crucial in parting and grooving — the correct set-up and choice of tools prevent problems from arising
  • The wide offer of geometries and tools with precision coolant makes it possible to optimize for different machining conditions

Energy and resource efficiency

  • Versatile tools with longer tool life enable reduced tool consumption
  • The improved security allows faster machining and increases overall efficiency, which translates to greater energy savings.*

*Based on tests in customer environment. In one case, CoroCut® 2 reduced power consumption by 38% and lowered CO2 emissions by 49% per year.

Cutting-edge insert technology

Engineered with our patented Flashlight technology and wear-resistant grades, CoroCut® 2 inserts deliver exceptional edge-line quality and long-lasting performance. For added stability in smaller insert seats, each insert features a rigid rail interface that locks into place with a reliable hold. Selected parting geometries also include a wiper design, ensuring excellent surface finishes.

The extensive range includes geometries and grades for every need, from ensuring chip control and minimizing tool wear to mastering tight tolerances in hard-to-machine materials.

More features and benefits
keyboard_arrow_down
  • Neutral, right- and left-hand style inserts with geometries designed for parting off
  • Grooving inserts in many widths and corner radii
  • Profiling inserts for high precision profiling operations
  • Optimized geometries for turning wider grooves
  • Tools with precision coolant for process security and longer tool life
  • Tools with clamping finger design and screw clamp solution for higher clamping force and better stability
  • Wiper design for parting inserts increases productivity
  • Tailor Made inserts and tools
  • Key for shorter parting blades
  • All CoroCut® 2 inserts are fully compatible with CoroCut 1-2 tool holders
Demo: Parting and grooving

See how a cost-efficient and secure parting and grooving operation can be achieved.

Demo: CoroCut® 2 -RF

Secure, high-precision profiling in HRSA materials

Demo: CoroCut® 2 -RO

High-precision profiling in HRSA

Demo: Profiling with CoroCut® 2

See how a cost-efficient and secure parting and grooving operation can be achieved.

Product variants

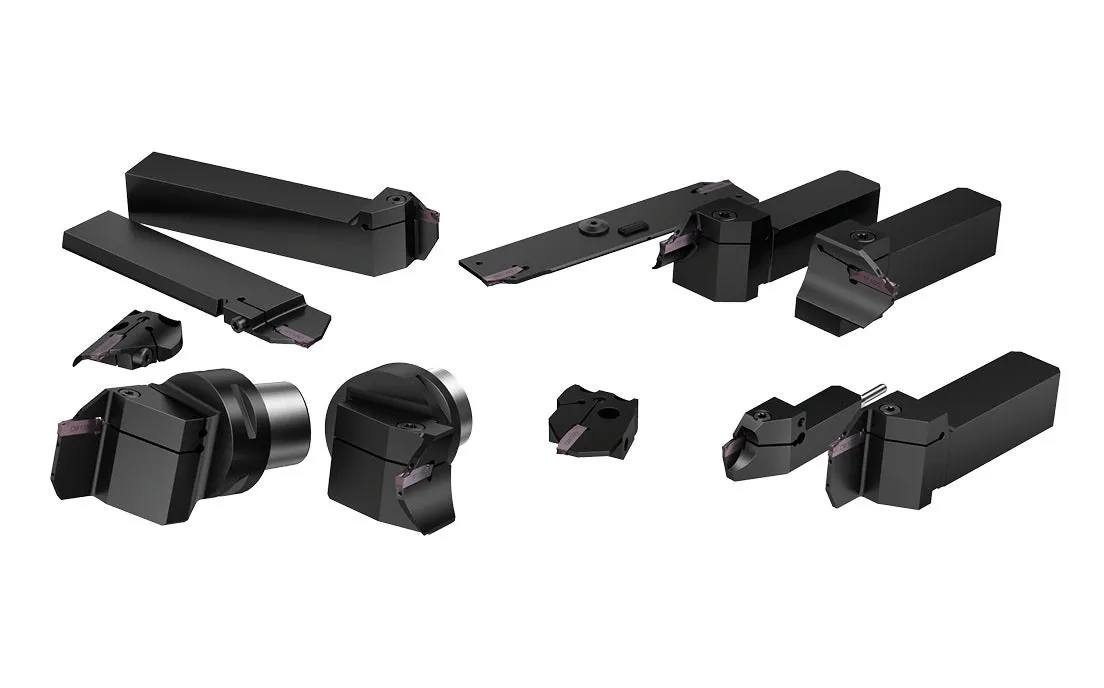

Tool holders

  • Coromant Capto®, VDI, and HSK-T for connecting QS shanks and parting blades in turning centres
  • QS™ stops for connecting QS shanks and swiss tools, machine specific adaptors
  • Rectangular shanks and boring bars
  • Plug-and-play adaptors for easy coolant connection
  • Boring bars for internal grooving
  • QS™ Micro holding system for small part machining

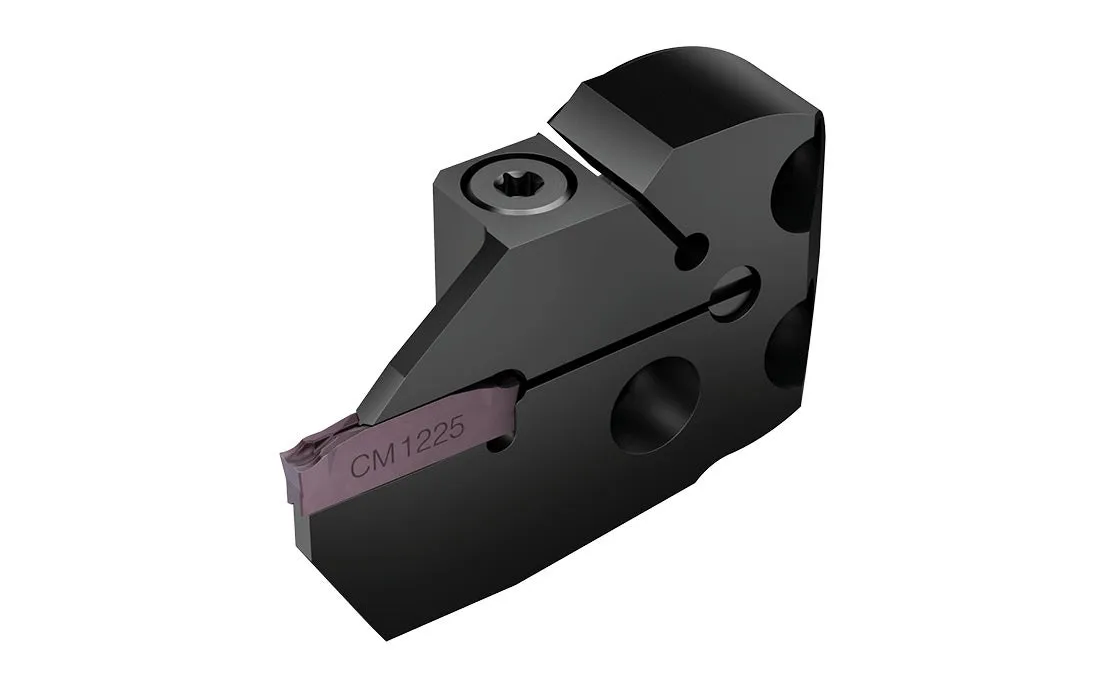

CoroTurn SL blades

CoroTurn® SL cutting blades enable a wide range of tool combinations from a small inventory of adaptors and cutting heads.

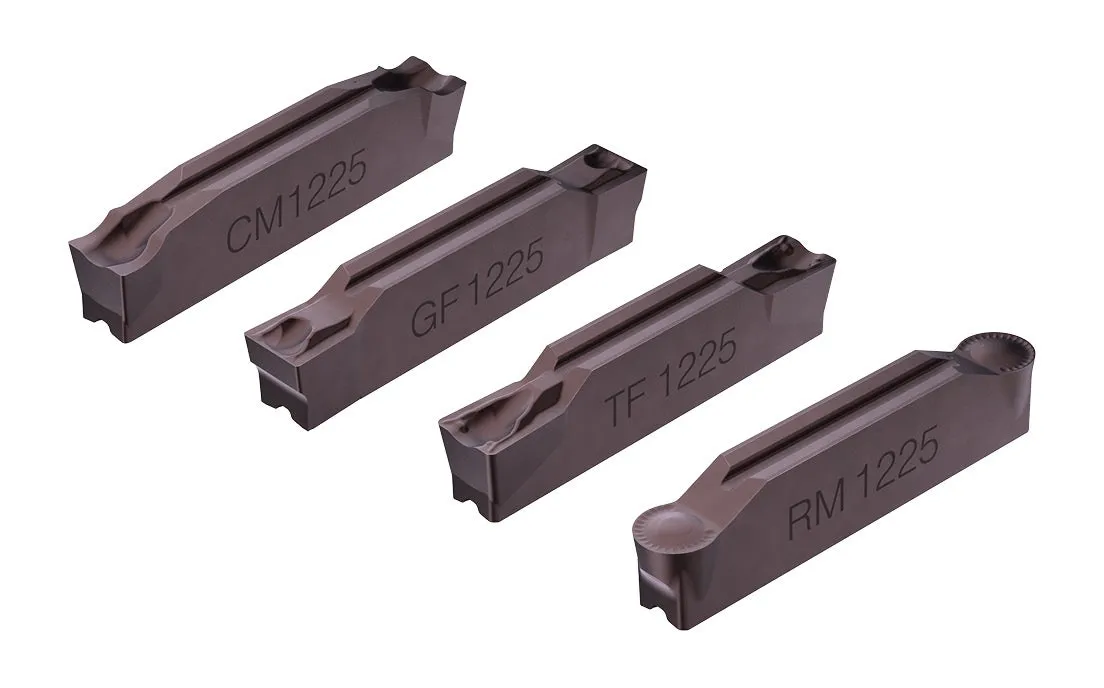

Insert geometries

  • Grooving: -GF, -GM, -GL, -TF
  • Parting off: -CF, -CM, -CR, -CS, -CO, -GL
  • Turning: -TF, -TM
  • Profiling: -RF, -RM, -RO
  • Wiper: -GM, -CM, -CR -TF, -CF

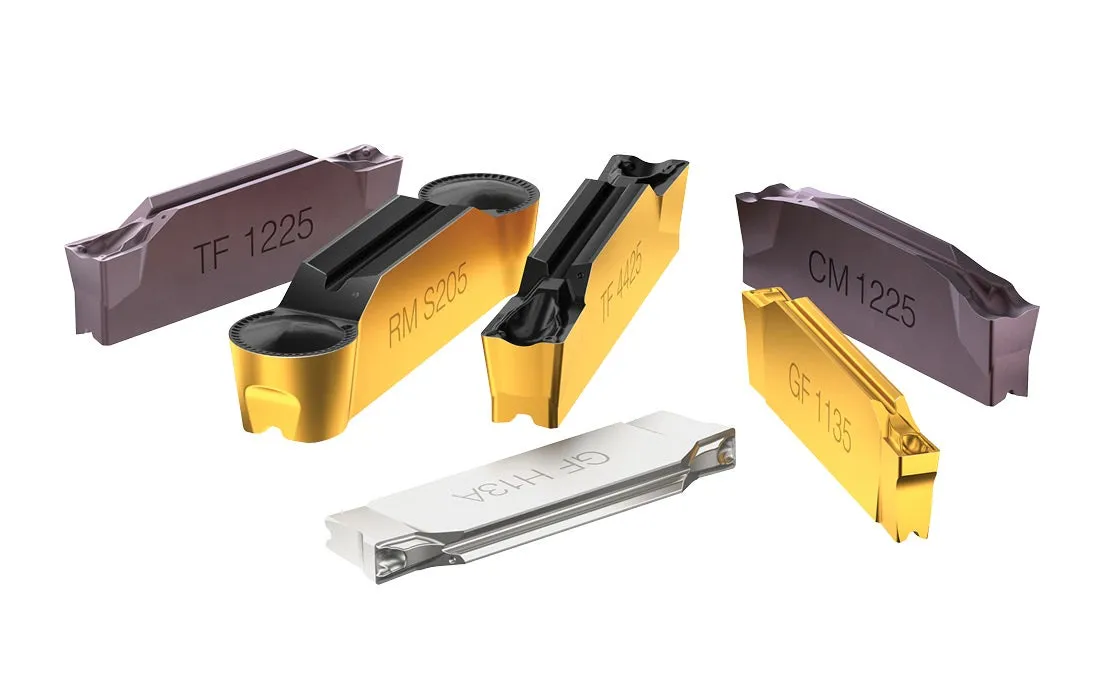

Insert grades

  • PVD: GC1225, GC1145, GC1205
  • CVD: GC1135, GC4425, S205, GC3115
  • Uncoated: CT5015, H13A

Insert geometries

-CF geometry

Positive parting off geometry that can be used in a wide variety of workpiece materials with low to medium feeds. It features a wiper for high surface quality.

-CM geometry

First choice for parting off to centre in good conditions in most materials and light intermittent applications, such as parting hexagonal bars.

-CR geometry

Productive parting off geometry for a big variety of workpiece materials. Use when a strong edge line is needed, for example for interrupted cuts.

-CS geometry

First choice parting-off geometry for eliminating pip and burrs. Suitable for both bars and tubes, and a wide variety of workpiece materials, mainly ISO P and ISO M.

-CO geometry

Ground parting-off geometry with a sharp edge, optimized for low feeds. Delivers low cutting forces and ensures tight tolerances in work-hardening materials.

-GF geometry

Ground geometry used with low feed for precision grooving. Low cutting forces and good surface finish. Available in many cutting widths and grades.

-GM geometry

Universal grooving geometry for all materials with outstanding chip control. Reduces chip width giving good surfaces.

-GL geometry

Parting and grooving geometry for long chipping materials using low to medium feed. Features the most agressive chip breaker in the CoroCut® concept.

-TF geometry

The most universal geometry in CoroCut®, possible to use in all application areas. Designed for low feed and good chip control. Good surface finish due to the wiper design.

-TM geometry

Geometry with strong edge and corners for general turning operations in all materials. A positive geometry eliminates the risk of built-up edge.

-RF geometry

Finishing geometry for profiling operations with low feeds and small depth of cuts. The perfect choice for finishing of HRSA components.

-RM geometry

Universal profiling geometry with a wide cutting data window. Excellent performance when used in non-linear profiling. Flashlight technology edge line quality allows for -RM in grade S205.

-RO geometry

Ground, high-precision profiling geometry optimized for ISO M and ISO S, where a positive and sharp geometry is needed for high surface quality and tool life.

Main grades

Main grades

GC1225: First choice grade for CoroCut. For all parting, grooving and turning operations under good conditions. Works well on low carbon and other smearing materials. Medium cutting speeds.

GC1135: For operations demanding toughness, such as parting off to centre and interrupted cuts. Same grade as 2135, renamed to follow CoroCut QD/QF/QI. Low to medium cutting speeds.

GC1145: For operations demanding extreme toughness such as interrupted cuts and parting off to centre on stainless steel. Low cutting speeds.

GC4425: Excellent combination of high wear resistance and good edge security. To be used in grooving, turning and parting off operations under stable conditions. Medium to high cutting speeds.

CT5015: A titanium-based grade with excellent resistance to oxidation and smearing. For high quality surface finishes when grooving low-alloyed steels under fairly good conditions. Moderate cutting speeds and feeds.

GC3115: A highly wear-resistant grade for grooving and turning applications under stable conditions. Also effective in hard steels. High cutting speeds.

H13A: Good wear resistance and toughness combined with edge sharpness. To be used on non-ferrous and titanium materials.

S205: A wear resistant CVD-coated grade for high-speed finishing in the cutting speed range between legacy carbide grades and CBN grades.

GC1205: Grade for machining aged nickel-based HRSA materials. Offers good adhesion and flank wear resistance. The hard substrate and PVD coating allow for a significant increase in cutting speed and tool life.

Grade positioning
  Good Average Difficult   Good Average Difficult



Assortment

more_horiz
More













Start by selecting one or more products

close

Start by selecting one or more products

close

Success stories

Customer case

Industry segment:​ Medical
Component:​ Screw
Material:​ Stainless steel 40 HRC
Operation:​ Parting off
Coolant: Mist coolant
Machine:​ Sliding head (Citizen)

Cutting data
keyboard_arrow_down

CompetitorSandvik Coromant
Tool-C2R-QS12-RE11AD
Insert-C2I-E2N-0200-0004-GF 1225
n, rpm9951393
vc, m/min (ft/min)25 (82)35 (115)
fn, mm/rev (in/rev)0.03 (0.001)0.08 (0.003)
ap, mm (inch)4 (0.157)4 (0.157)
Cutting time, sec21.08
Tool life, pcs7001500

Results

+87%

Productivity increase

-22%

Cost reduction

39%

Power savings due to higher productivity

44%

Decreased CO2 emissions per year

Challenge: To increase tool life, chip control and reduce cycle time and cost per part

Result: Reduced cycle time and cost per part with increased tool life. Chip control was also improved.

Customer case

Industry segment:​ Oil and gas
Component:​ Down hole plunger
Material:​ P1.1.Z.HT
Operation:​ Machine 14 grooves on OD
Machine:​ Mazak Quick Turn Nexus 250

Cutting data
keyboard_arrow_down

CompetitorSandvik Coromant
Tool-C2R-QSA16-RH25-CB
Insert-C2I-H2N-0400-0004-TF 4425
vc, m/min (ft/min)152 (500)244 (800)
fn, mm/rev (in/rev)0.10 (0.004)0.15 (0.006)
ap, mm (inch)3.8 (0.150)3.8 (0.150)
Coolant:External coolantThrough tool, over and under
Tool life, pcs2038

Results

+79%

Productivity increase

44%

Cost reduction

38%

Power savings due to higher productivity

49%

Decreased CO2 emissions per year

Challenge: Poor chip control causes machine delays and slows down productivity.

Result: CoroCut® 2 and QS™ system with over and under coolant provides improved chip control. The customer can use higher cutting data and thereby reduce overall cost per part.

How to use

Recommendations

  • Start with first choice recommended cutting data
  • All cutting data recommendations are given without precision coolant
  • Increase speed by 30-50% when applying precision coolant
  • In parting off and external grooving CoroCut® 2 is a cost-efficient solution for cutting depths where 2-edged inserts can be used.

If CoroCut® 2 doesn’t suit your needs, see Parting and grooving tools page for more tool recommendations.

Insert recommendations

Insert seat sizes

  • The inserts are available in different insert seat sizes with different corner radii. All CoroCut® 2 inserts are fully compatible with existing CoroCut® 1-2 tool holders. However, to gain the benefit of a more precise insert position and minimized insert movement, a conversion to the new tool holders with the rail design is necessary for tip seat E-F-G.
  • The insert seat sizes must correspond with the holder seat size

Insert seat sizes

  • D with V-shape:
    • Insert widths: 1.5 mm (0.059 inch)
    • Cutting depth: 8–17 mm (0.315–0.669)
  • E-L with stable rail design:
    • Insert widths: 2–8 mm (0.079–0.315 inch)
    • Cutting depth: 8–32 (0.315–1.30 inch)

Undercutting with CoroCut® 2

CoroCut® 2 with two-edged inserts offers great chip control in undercutting operations with small clearance depths at low feeds.

  • -RM is an all-round geometry for profiling in all materials
  • Use the -RO geometry for operations in stainless steel, HRSA and other sticky materials

Circlip grooving

For low cutting forces and good surface quality, use CoroCut® 2 with -GF geometry.

First choice inserts

Parting off




  1. Parting tubes 2. Parting bars, good conditions 3. Parting bars, difficult conditions 4. Light intermittence 5. Severe intermittence
ISO P GC1225 -CF GC1225 -CM GC1135 -CR GC1135 -CM GC1135 -CR
ISO M GC1225 -CM GC1225 -CM GC1135 -CM GC1145 -CM GC1145 -CM
ISO K GC4425 -CM GC4425 -CM GC1135 -CR GC1135 -CR GC1135 -CR
ISO N H13A -CO H13A -CO H13A -TF H13A -TF H13A -TF
ISO S GC1205 -CO GC1205 -CO GC1145 -CM GC1145 -CM GC1145 -CM
ISO H CB7015 -S* CB7015 -S* CB7015 -S* CB7015 -S* CB7015 -S*

All grades and geometries are updated except those marked with *, which are still available in CoroCut® 1-2.

  1. Parting bars or tubes – Good to normal conditions
  2. Parting bars – Good to normal conditions (sub chuck and/or feed reduction in centre)
  3. Parting bars – Normal to rough conditions, no feed reduction in centre
  4. Parting bars or tubes – Light to medium intermittence
  5. Parting bars or tubes – Medium to severe intermittence

Grooving




  Grooving Turning wide groove Internal groove Internal wide groove Face groove
ISO P GC1225 -GF GC4425 -TF GC1225 -GF GC4425 -TF GC4425 -TF
ISO M GC1135 -GF GC1135 -TF GC1135 -GF GC1135 -TF GC1135 -TF
ISO K GC3115 -GM GC3115 -TM GC1225 -GF GC3115 -TF GC3115 -TF
ISO N H13A -GF H13A -TF H13A -GF H13A -TF H13A -TF
ISO S GC1205 -GF GC1205 -TF GC1205 -GF GC1205 -TF GC1205 -TF
ISO H CB7015 -S* CB7015 -S* CB7015 -S* CB7015 -S* CB7015 -S*

All grades and geometries are updated except those marked with *, which are still available in CoroCut® 1-2.

Profiling




  External profiling Internal profiling
ISO P GC4425 -RM GC1225 -RF
ISO M GC1225 -RM GC1225 -RF
ISO K GC4425 -RM GC4425 -RM
ISO N H10 -AM* H10 -AM*
ISO S S205 -RO GC1205 -RF
ISO H CB7015 -RE* CB7015 -RE*

All grades and geometries are updated except those marked with *, which are still available in CoroCut® 1-2. -RO and -AM have a ground cutting edge and tighter tolerances than -RM. Use -RO/-AM when high repeatability is required.

Geometries and application

Parting off
-CM -CR -CF -CS -CO -GF -GM -GL -TF -TM -RF -RM -RO

  Main application
  Complementary action
  Not recommended



Grooving
-CM -CR -CF -CS -CO -GF -GM -GL -TF -TM -RF -RM -RO

  Main application
  Complementary action
  Not recommended



Profiling
-CM -CR -CF -CS -CO -GF -GM -GL -TF -TM -RF -RM -RO

  Main application
  Complementary action
  Not recommended



Turning
-CM -CR -CF -CS -CO -GF -GM -GL -TF -TM -RF -RM -RO

  Main application
  Complementary action
  Not recommended
