Products based on category

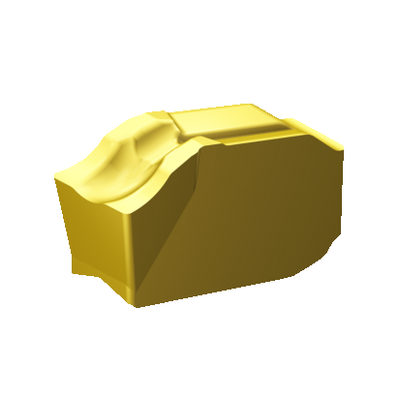

Generic representation
Available
Package quantity: 10
ISO: QD-LH-0400-0502-CM 1135
Material Id: 6398209
EAN: 26398209
ANSI: QD-LH-0400-0502-CM 1135
Start values (Primary (Radial) KAPR 85 deg)
p
fn0.11 mm/r (0.07 - 0.21)
vc125 m/min (160 - 110)
m
fn0.11 mm/r (0.07 - 0.21)
vc105 m/min (135 - 90)
s
fn0.11 mm/r (0.07 - 0.21)
vc26 m/min (32 - 23)

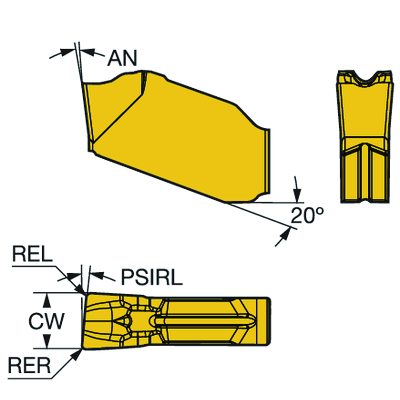

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
CM
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code(IFS)
Concave prismatic section
Insert size and shape
(CUTINT_SIZESHAPE)
CoroCut QD -size H
Cutting edge count(CEDC)
1
Insert seat - metric(SSC_M)
H
Cutting width
(CW)
4 mm
Cutting width lower tolerance(CWTOLL)
-0.05 mm
Cutting width upper tolerance(CWTOLU)
0.05 mm
Corner radius left(REL)
0.2 mm
Corner radius right(RER)
0.2 mm
Corner radius lower tolerance(RETOLL)
-0.05 mm
Corner radius upper tolerance(RETOLU)
0.05 mm
Major left hand cutting edge angle(PSIRL)
5 °
Machine side body angle(BAMS)
0 °
Hand
(HAND)
Left
Grade
(GRADE)
1135
Coating(COATING)
CVD TiCrN+Al2O3+TiN
Insert thickness(S)
4 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0028 kg
Insert seat size code imperial view(SSC_N)
H
Release date(ValFrom20)
9/24/13
Release pack id(RELEASEPACK)
13.2
