266LG-22RN01A040M 1020
266LG-22RN01A040M 1020
CoroThread® 266, insert for thread turningchevron_right

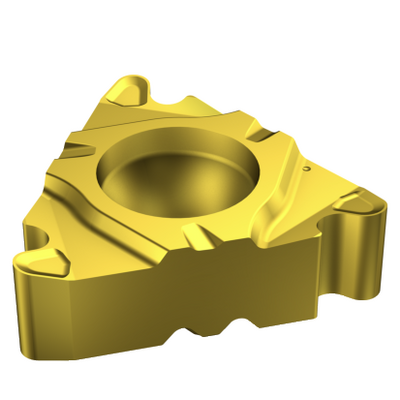

Generic representation
Available
Package quantity: 10
ISO: 266LG-22RN01A040M 1020
Material Id: 5757645
EAN: 12324944
ANSI: 266LG-22RN01A040M 1020
Start values
P2.1.Z.AN, Hardness: 175 HB
P
ap 3.15 mm
nap14
vc 125 m/min
M1.0.Z.AQ, Hardness: 200 HB
M
ap 3.15 mm
nap14
vc 110 m/min
N1.3.C.AG, Hardness: 90 HB
N
ap 3.15 mm
nap14
vc 280 m/min

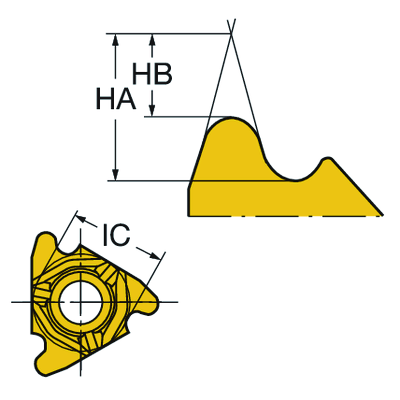

Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
K
N
S
H
Chip breaker(CBMD)
A
Thread form(THFT)
Round 30°
Standard number(STDNO_1)
DIN 405
Thread type(TTP)
external
Threads per inch(TPI)
4
Thread profile type(TPT)
full profile
Tooth count(NT)
1
Thread tolerance class(TCTR)
IT 7-6
Theoretical thread height(HA)
7.45 mm
Thread height difference(HB)
4.3 mm
Profile distance ex(PDX)
2.6 mm
Profile distance ey(PDY)
1.377 mm
Insert mounting style code (metric)(IFS)
40°-60° countersunk hole, rail bottom
Fixing hole diameter(D1)
5.7 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroThread 266/254 -external size 22L
Cutting edge count(CEDC)
3
Inscribed circle diameter(IC)
12.7 mm
Hand
(HAND)
Left
Grade
(GRADE)
1020
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiN
Insert thickness(S)
5.5626 mm
Weight of item(WT)
0.0105 kg
Insert seat - metric(SSC_M)
22
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
2/25/08
Release pack id(RELEASEPACK)
08.1
