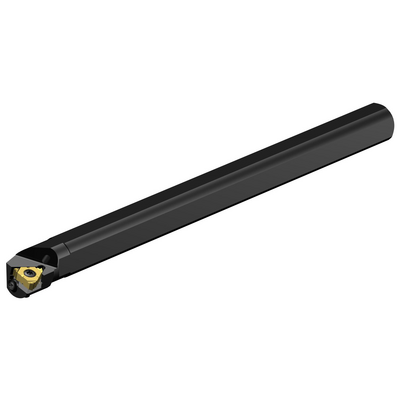

Specific representation
Available
Package quantity: 1
ISO: 266RKF-20-16
Material Id: 5758032
EAN: 12387340
ANSI: 266RKF-20-16
Technical illustrations
Generic representation
Product data
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroThread -internal size 16 (266.RL-16)
Axial clearance angle(ALP)
-15 °
Thread helix correction angle(THCA)
1 °
Connection - machine side(ADINTMS)
Cylindrical shank w/ 3 flats -metric: 20
Minimum bore diameter
(DMIN)
25 mm
Machine side body angle(BAMS)
0 °
Minimum overhang(OHN)
29 mm
Maximum overhang
(OHX)
60 mm
Usable length
(LU)
60 mm
Hand
(HAND)
Right
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
40 bar
Connection diameter machine side(DCONMS)
20 mm
Shank height(H)
18 mm
Functional length(LF)
250 mm
Functional width(WF)
14 mm
Functional height(HF)
0 mm
Body diameter(BD)
20 mm
Overall length(OAL)
250 mm
Torque(TQ)
3 Nm
Weight of item(WT)
0.5168 kg
Insert seat - metric(SSC_M)
16
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
1/4/10
Release pack id(RELEASEPACK)
10.1
