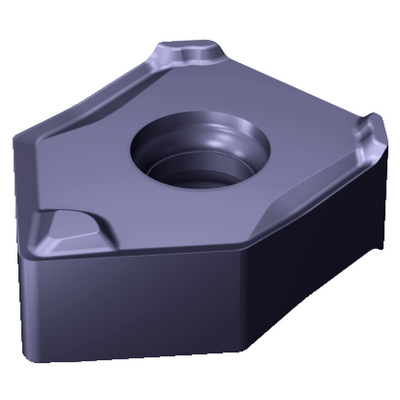

Generic representation
Available
Package quantity: 10
ISO: 345N-1305E-PW8 1230
Material Id: 8519109
EAN: 7323227868387
ANSI: 345N-1305E-PW8 1230
Start values (KAPR 45 deg )
P2.1.Z.AN, Hardness: 175 HB
P
fz 0.11 mm (0.07 - 0.2)
hex 0.08 mm (0.05 - 0.14)
vc 300 m/min (325 - 255)
M1.0.Z.AQ, Hardness: 200 HB
M
fz 0.11 mm (0.07 - 0.2)
hex 0.08 mm (0.05 - 0.14)
vc 160 m/min (165 - 145)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
N
S
H
Chip breaker(CBMD)
PW8
Operation type
(CTPT)
light
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
4.8 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroMill 345 -1305
Cutting edge count(CEDC)
2
Inscribed circle diameter(IC)
13 mm
Insert shape code(SC)
Square
Cutting edge effective length(LE)
8.8 mm
Depth of cut maximum
(APMX)
6 mm
Wiper edge length(BS)
8 mm
Wiper edge radius(BSR)
500 mm
Corner radius
(RE)
1 mm
Major cutting edge angle(KRINS)
45 °
Insert rake angle(GAN)
22 °
Hand
(HAND)
Neutral
Grade
(GRADE)
1230
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlSiN
Insert thickness(S)
5.05 mm
Weight of item(WT)
0.01 kg
Insert seat - metric(SSC_M)
13
Insert seat size code imperial view(SSC_N)
13
Release date(ValFrom20)
9/25/24
Release pack id(RELEASEPACK)
24.2
