Generic representation
Out of stock
Package quantity: 1
ISO: 393.CLF-201052
Material Id: 7621263
EAN: 7323223968524
ANSI: 393.CLF-201052

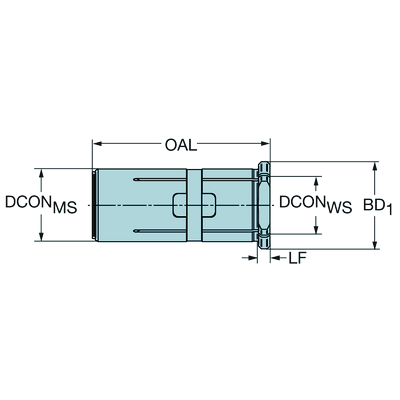

Technical illustrations
Product data
Connection - machine side(ADINTMS)
Cylindrical Collet for hydraulic membrane chucks, with flange -size 20
Connection - workpiece side
(ADINTWS)
Weldon -metric: 10
Coolant entry style(CNSC)
axial concentric entry
Coolant exit style(CXSC)
axial concentric on circle
Connection diameter machine side(DCONMS)
20 mm
Connection diameter workpiece side(DCONWS)
10 mm
Functional length(LF)
4 mm
Overall length(OAL)
55 mm
Body diameter(BD)
25 mm
Body length(LB)
4 mm
Body half taper angle(BHTA)
0 °
Weight of item(WT)
0.0841 kg
Release date(ValFrom20)
2/21/19
Release pack id(RELEASEPACK)
19.1
