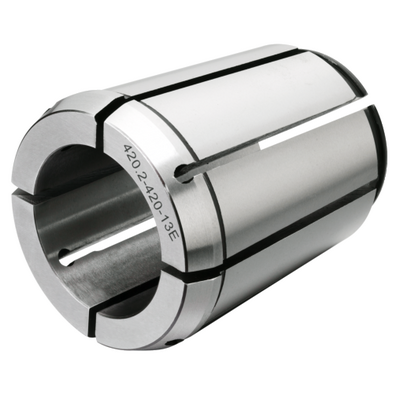

Generic representation
Available within a week
Package quantity: 1
ISO: 420.2-420-00
Material Id: 6273080
EAN: 26273080
ANSI: 420.2-420-00

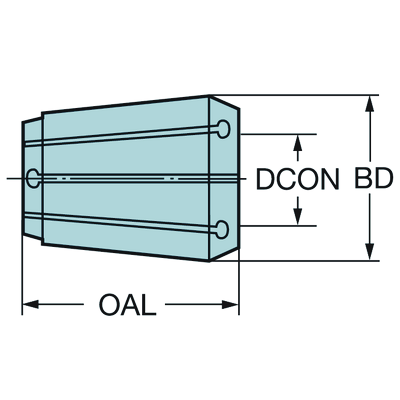

Technical illustrations
Product data
Connection - machine side(ADINTMS)
Collet for Coromant tube connector (424.2) -size 81
Connection - workpiece side
(ADINTWS)
Cylindrical clamping (sleeve) -metric: 17
Coolant entry style(CNSC)
axial concentric entry
Coolant exit style(CXSC)
axial concentric exit
Coolant pressure(CP)
40 bar
Functional diameter(DFC)
81 mm
Connection diameter workpiece side(DCONWS)
17 mm
Functional length(LF)
0 mm
Overall length(OAL)
105 mm
Body diameter(BD)
84.5 mm
Weight of item(WT)
2.886 kg
Release date(ValFrom20)
2/20/13
Release pack id(RELEASEPACK)
13.1
