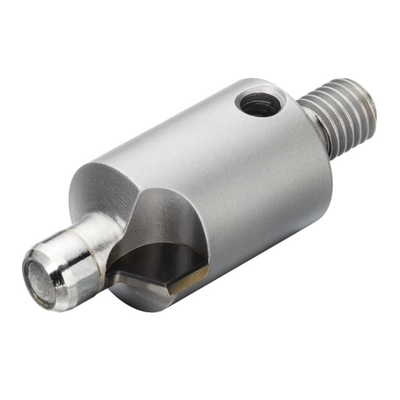

Generic representation
Available within a week
Package quantity: 1
ISO: 452.C1-0632-100T-C CD10
Material Id: 6010901
EAN: 26010901
ANSI: 452.C1-0632-100T-C CD10

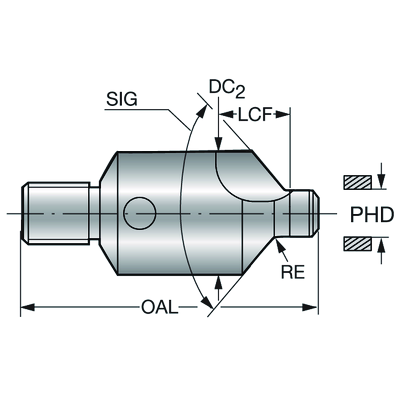

Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
O
Cutting diameter(DC_1)
6.327 mm
Cutting diameter(DC_2)
14 mm
Premachined hole diameter(PHD)
6.327 mm
Connection - machine side(ADINTMS)
Threaded coupling (Microstop) -inch: 1/4-28
Grade
(GRADE)
CD10
Substrate(SUBSTRATE)
DP
Shank standard group(BSG)
COROMANT
Coolant entry style(CNSC)
without coolant entry
Point angle(SIG)
100 °
Overall length(OAL)
37.82 mm
Functional length(LF)
11.09 mm
Chip flute length(LCF)
14.58 mm
Flute count(NOF)
1
Rotational speed maximum(RPMX)
6,000 1/min
Weight of item(WT)
0.0331 kg
Release date(ValFrom20)
2/22/11
Release pack id(RELEASEPACK)
11.1
