Generic representation
List price: 110.00 EUR
Available
Package quantity: 1
ISO: 452.R-0556-032A0-CM H10F
Material Id: 6010913
EAN: 26010913
ANSI: 452.R-0556-032A0-CM H10F

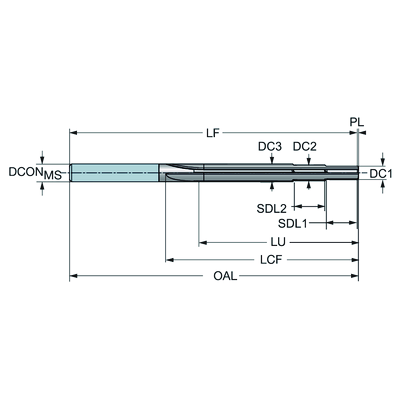

Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
M
N
S
O
Cutting diameter(DC_1)
3.957 mm
Cutting diameter(DC_2)
4.744 mm
Cutting diameter(DC_3)
5.557 mm
Achievable hole tolerance lower(TCHAL)
5.539 mm
Achievable hole tolerance upper(TCHAU)
5.567 mm
Premachined hole diameter(PHD)
3.957 mm
Hole type(HTY)
through hole
Step diameter length(SDL_1)
6.02 mm
Usable length
(LU)
50.8 mm
Step diameter length(SDL_2)
5.95 mm
Step included angle(STA_1)
90 °
Step included angle(STA_2)
90 °
Connection - machine side(ADINTMS)
Cylindrical shank without clamping features (without flange) -inch: 7/32
Connection diameter tolerance(TCDCON)
h8
Grade
(GRADE)
H10F
Substrate(SUBSTRATE)
HF
Shank standard group(BSG)
COROMANT
Coolant exit style(CXSC)
no coolant exit
Coolant entry style(CNSC)
without coolant entry
Connection diameter machine side(DCONMS)
5.5563 mm
Overall length(OAL)
101.6 mm
Functional length(LF)
88.44 mm
Plug length(PLGL)
13.16 mm
Cutting edge length(L)
50.8 mm
Chip flute length(LCF)
55.88 mm
Flute count(NOF)
4
Rotational speed maximum(RPMX)
50,000 1/min
Weight of item(WT)
0.0254 kg
Release date(ValFrom20)
2/18/11
Release pack id(RELEASEPACK)
11.1
