462.1-2000-090A1-XM X2BM
462.1-2000-090A1-XM X2BM
New

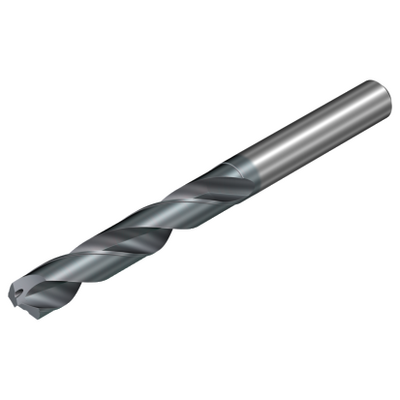

Generic representation
Available
Package quantity: 1
ISO: 462.1-2000-090A1-XM X2BM
Material Id: 8653775
EAN: 7323228359976
ANSI: 462.1-2000-090A1-XM X2BM
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Cutting diameter
(DC)
20 mm
Connection diameter machine side(DCONMS)
20 mm
Usable length
(LU)
78.2 mm
Achievable hole tolerance(TCHA)
H9
Usable length diameter ratio
(ULDR)
3.91
Orthogonal rake angle(GAMO)
20.45 °
Face effective cutt edge count(ZEFF)
2
Connection - machine side(ADINTMS)
Cylindrical shank (DIN6535-HA) -metric: 20
Connection diameter tolerance(TCDCON)
h6
Grade
(GRADE)
X2BM
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlCrSiN
Shank standard group(BSG)
DIN 6537 L
Chip breaker(CBMD)
XM
Coolant entry style(CNSC)
axial concentric entry on circle
Coolant pressure(CP)
20 bar
Point angle(SIG)
140 °
Point length(PL)
3.6397 mm
Overall length(OAL)
153 mm
Functional length(LF)
150.088 mm
Chip flute length(LCF)
101 mm
Rotational speed maximum(RPMX)
6,367 1/min
Weight of item(WT)
0.49 kg
Release date(ValFrom20)
1/18/25
Release pack id(RELEASEPACK)
25.1
