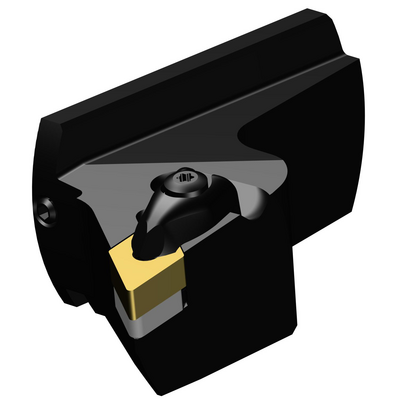

Specific representation
Available
Package quantity: 1
ISO: 570-DDUNL-80-15
Material Id: 5764250
EAN: 12068000
ANSI: 570-DDUNL-80-15

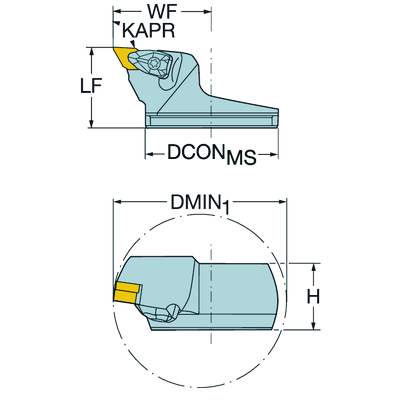

Technical illustrations
Generic representation
Product data
Tool cutting edge angle(KAPR_1)
93 °
Lead angle(PSIR)
-3 °
Clamping type code(MTP)
clamp on top of insert and into hole
Insert type(CUTINT_MASTER)
DNMG 150608
Connection - machine side(ADINTMS)
SL head (quick change) -size 80
Maximum ramping angle
(RMPX)
27 °
Minimum bore diameter
(DMIN_1)
100 mm
Workpiece side body angle
(BAWS)
0 °
Machine side body angle(BAMS)
0 °
Maximum overhang
(OHX)
45 mm
Hand
(HAND)
Left
Coolant exit style(CXSC)
no coolant exit
Coolant entry style(CNSC)
without coolant entry
Connection diameter machine side(DCONMS)
80 mm
Shank height(H)
37.5 mm
Functional length(LF)
45 mm
Functional width(WF)
57 mm
Functional height(HF)
0 mm
Orthogonal rake angle(GAMO)
-6 °
Inclination angle(LAMS)
-8 °
Torque(TQ)
3.9 Nm
Body material(BMC)
Steel
Weight of item(WT)
0.543 kg
Master insert identification(MIID)
DNMG 15 06 08
Overall length(OAL)
45 mm
Insert seat - metric(SSC_M)
15
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
5/23/05
Release pack id(RELEASEPACK)
05.2
